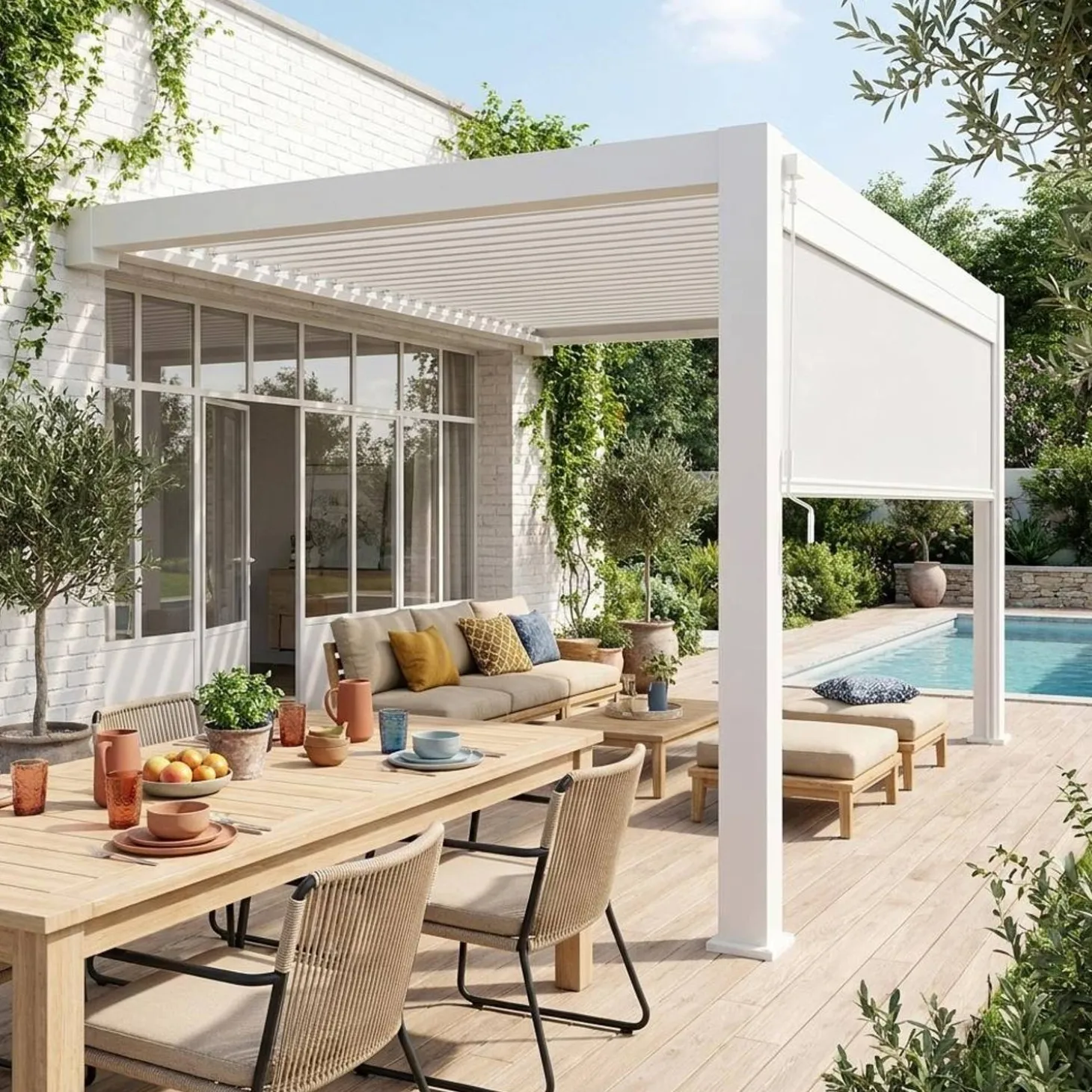

Elegant shading in your garden

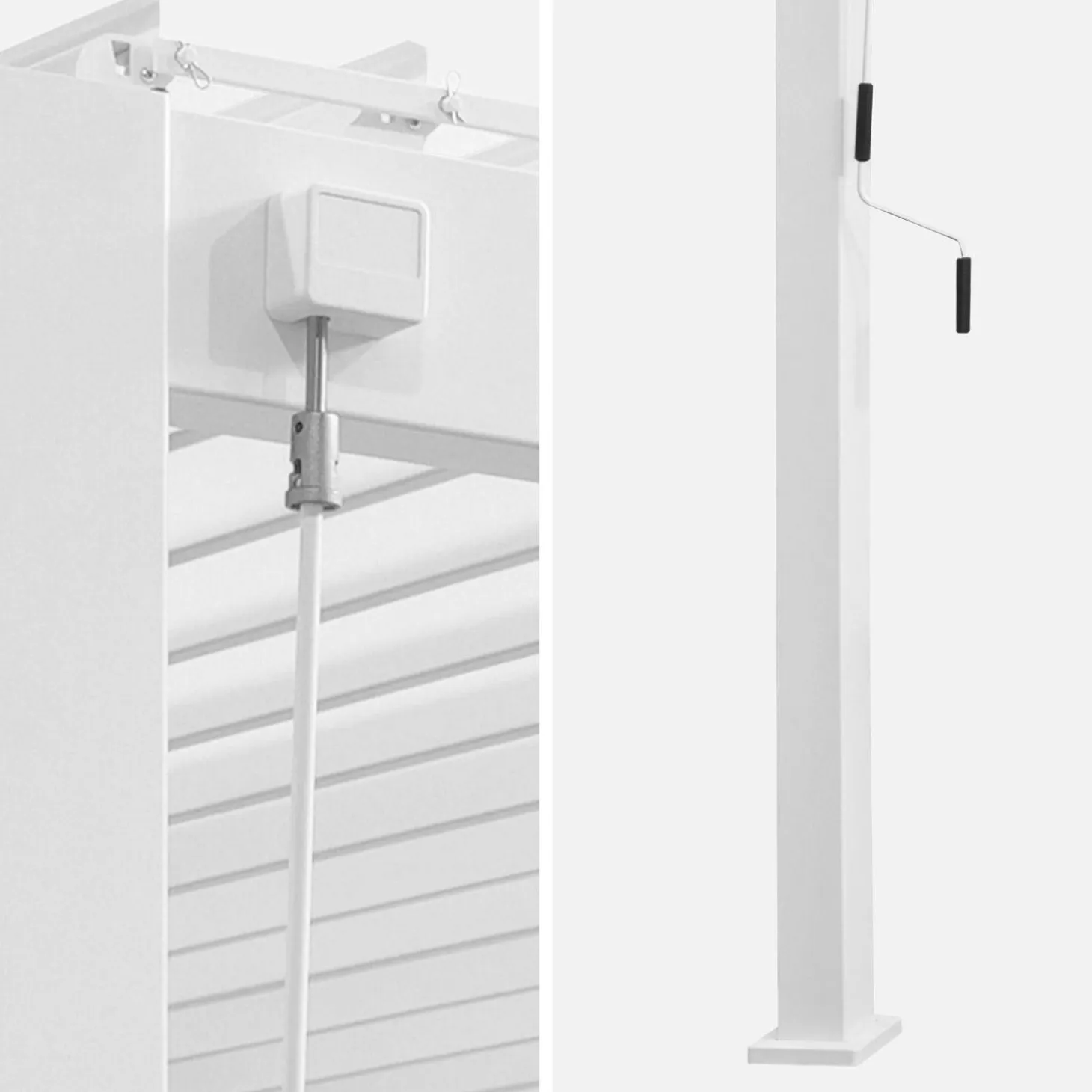

The Triomphe 3 x 4 m wall-mounted pergola with louvered roof is an elegant and durable solution for enjoying your garden all year round. Attached to the wall and the ground, it adapts to weather conditions: protection against rain and cold in winter, shade and coolness in summer, while adding a contemporary touch that integrates perfectly with a terrace. Its robust aluminum structure, combined with galvanized steel slats, ensures excellent resistance to weather and UV rays while requiring very little maintenance. Its adjustable slats, controlled by a crank, allow you to manage shade, sun, and ventilation, while its integrated drainage system efficiently evacuates rainwater.

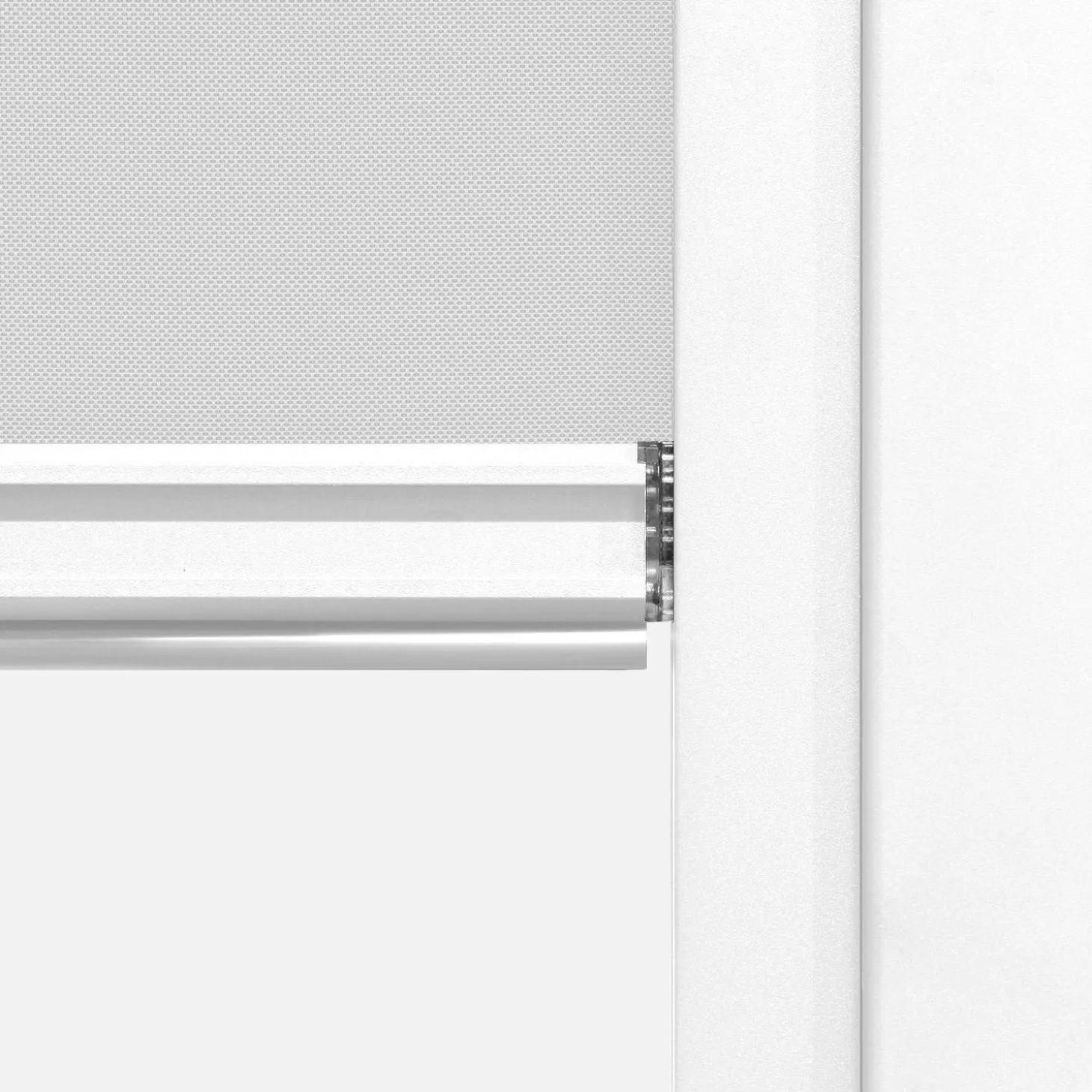

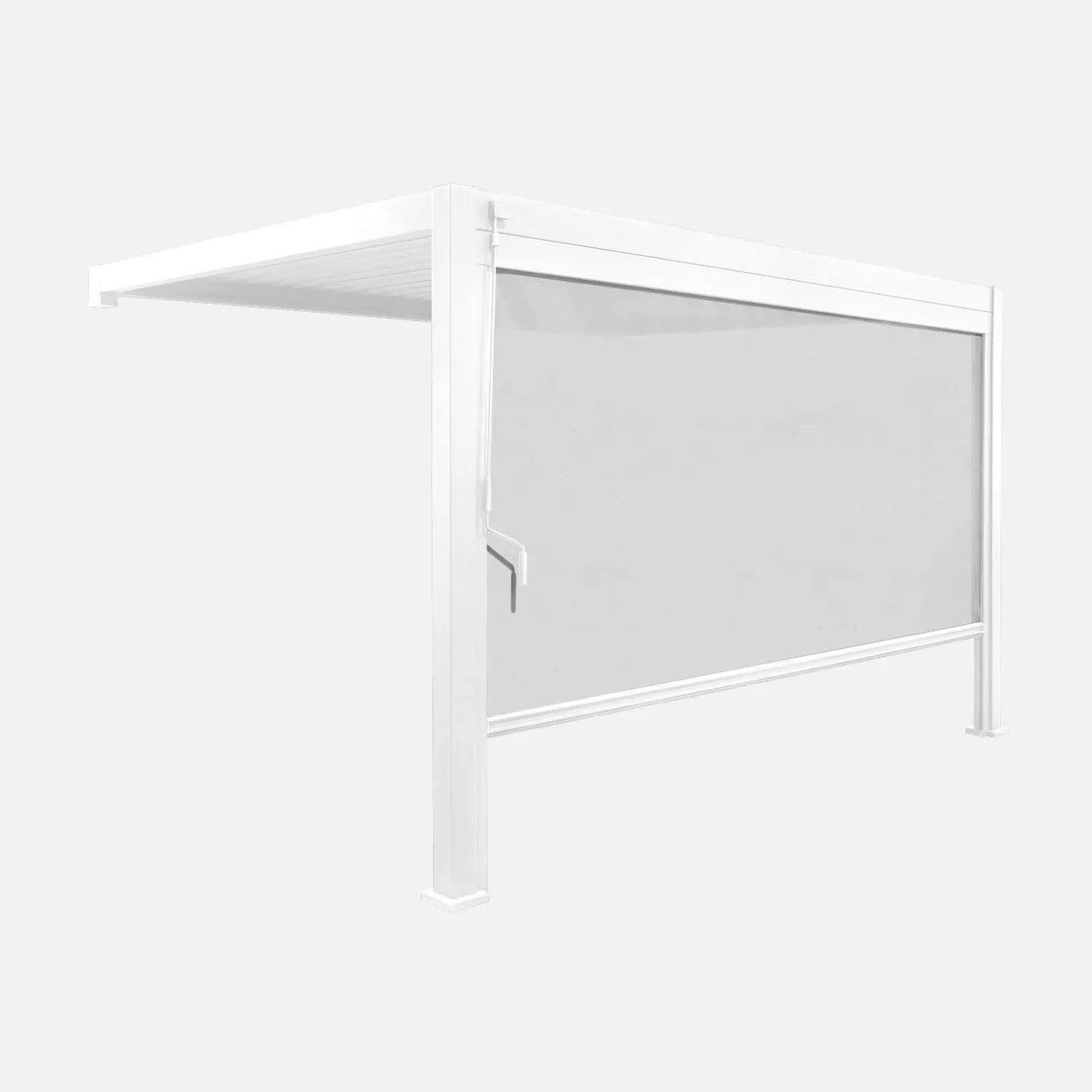

A blind for more comfort
This blind protects you from the sun and the rain. It shields you from prying eyes but is not completely opaque. It is perfect for providing optimal comfort on your terrace and enjoying good times with family or friends. Easy to use, you just need to manually lower the blind to shelter from the wind or rain. Its height is not predefined, so you can adjust it according to your needs. Sturdy, it is made with quality materials. The blind is made of aluminum and the textilene fabric offers effective resistance against UV rays and the rain. For added safety, the blind should be retracted in case of absence or strong winds (over 50 km/h).
Additional Information:
Although it offers protection against rain, this pergola is not a completely waterproof shelter.
Your pergola is guaranteed for 2 years + 3 years offered from the date of delivery.
The blinds are not included in the warranty extension and are guaranteed for 2 years. You can find the conditions of this warranty in our legal notices.
This pergola is to be assembled on level ground.
It is recommended to keep the slats open in case of snowfall.
The blind can only be installed opposite the facade on the 4m side. No accessories can be installed on the 3m sides.
Package 1: L 381 x l 22.5 x h 17 cm – 43.5 kg
Package 2: L 288 x l 26 x h 12.5 cm – 25.8 kg
Package 3: L 395 x l 28 x h 17 cm – 43.1 kg
Package 4: L 299 x l 40 x h 19 cm – 68.7 kg
Package 5: L 302 x l 40 x h 19 cm – 64 kg
Sun protection: enjoy its coolness in summer
Natural ventilation
Adjustable slats to control light flow
| Type | Lean to |
| Motorised | No |
| Colour | White |
| Pantone code | 000C |
| Warranty period | 2 years + 3 years free! (Excluding accessories) |
| Size | 3 x 4 m |
| Surface | 12 m² |
| Length | 3 m |
| Width | 4 m |
| Interior floor area | 10,35 m² |
| Aluminium thickness | 1,4 / 1,5 mm |
| Slat orientation | 0 to 90 degrees |
| Number of slats | 25 |
| Weight | 177,6 kg |
| Material | Aluminium |
| Frame material | Aluminium |
| Slat material | Galvanised steel |
| Screw material | Stainless steel |
| To be fixed to the ground | Yes (anchor kit not included) |
| Crank handle | Yes |
| Load resistance | 66,4 kg/m² |
| Maximum permissible roof load | 1195,2 kg |
| Anti-rust / Corrosion | Yes |
| Water drainage system | By drainage inside the posts |
| Waterproofing | Roof and slats |
| Accessories Included | 1 blind 4m Triomphe |
| Fabric material | Textilene |
| Density | 470 g/m² |
| Assembly time | 4h / 4 people |
| Assembly | The product is very easy to assemble, instructions supplied |
| Number of packages | 5 |
| Use | Outdoor |
| Use | Domestic use only |
| Range | Triomphe |
| Wind resistance | Class 6: 20.7 m/s |
| Overall dimensions | L 392 x W 301 x H 250 cm |
| Interior dimensions | L 370.50 x W 290 x H 236.55 cm |
| Roof dimensions | W 392 x D 301 cm |
| Height | Roof: 257 cm / Under the roof: 236.5 cm |
| Post dimensions | W 11.1 x D 11.1 x H 250 cm |
| Slat dimensions | L 294 x W 17 x H 3 cm |
| Blind dimensions | L 370 x H 236 cm / 37.1 kg |
Package 1: L 381 x l 22.5 x h 17 cm – 43.5 kg
Package 2: L 288 x l 26 x h 12.5 cm – 25.8 kg
Package 3: L 395 x l 28 x h 17 cm – 43.1 kg
Package 4: L 299 x l 40 x h 19 cm – 68.7 kg
Package 5: L 302 x l 40 x h 19 cm – 64 kg
