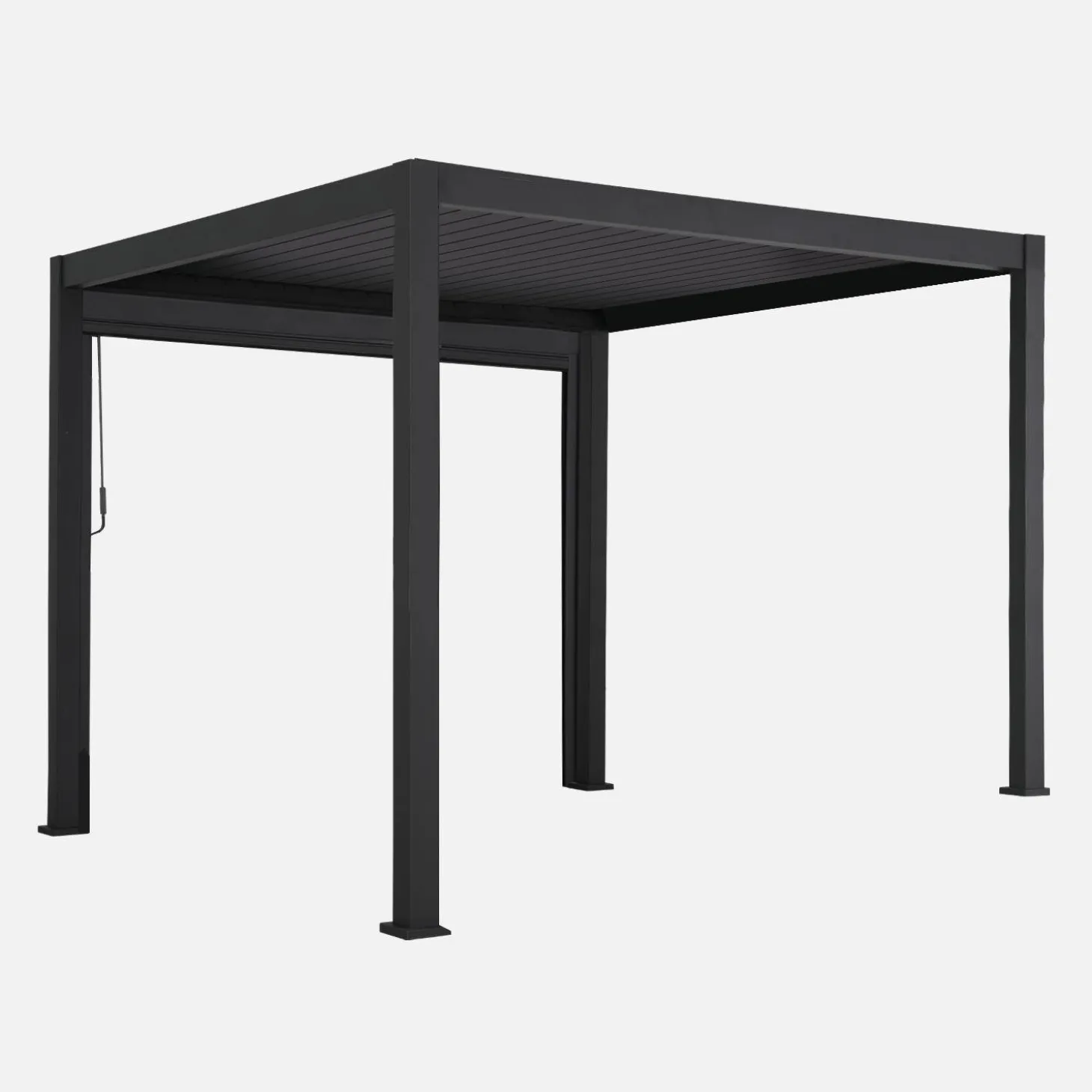

An adjustable 4-season pergola

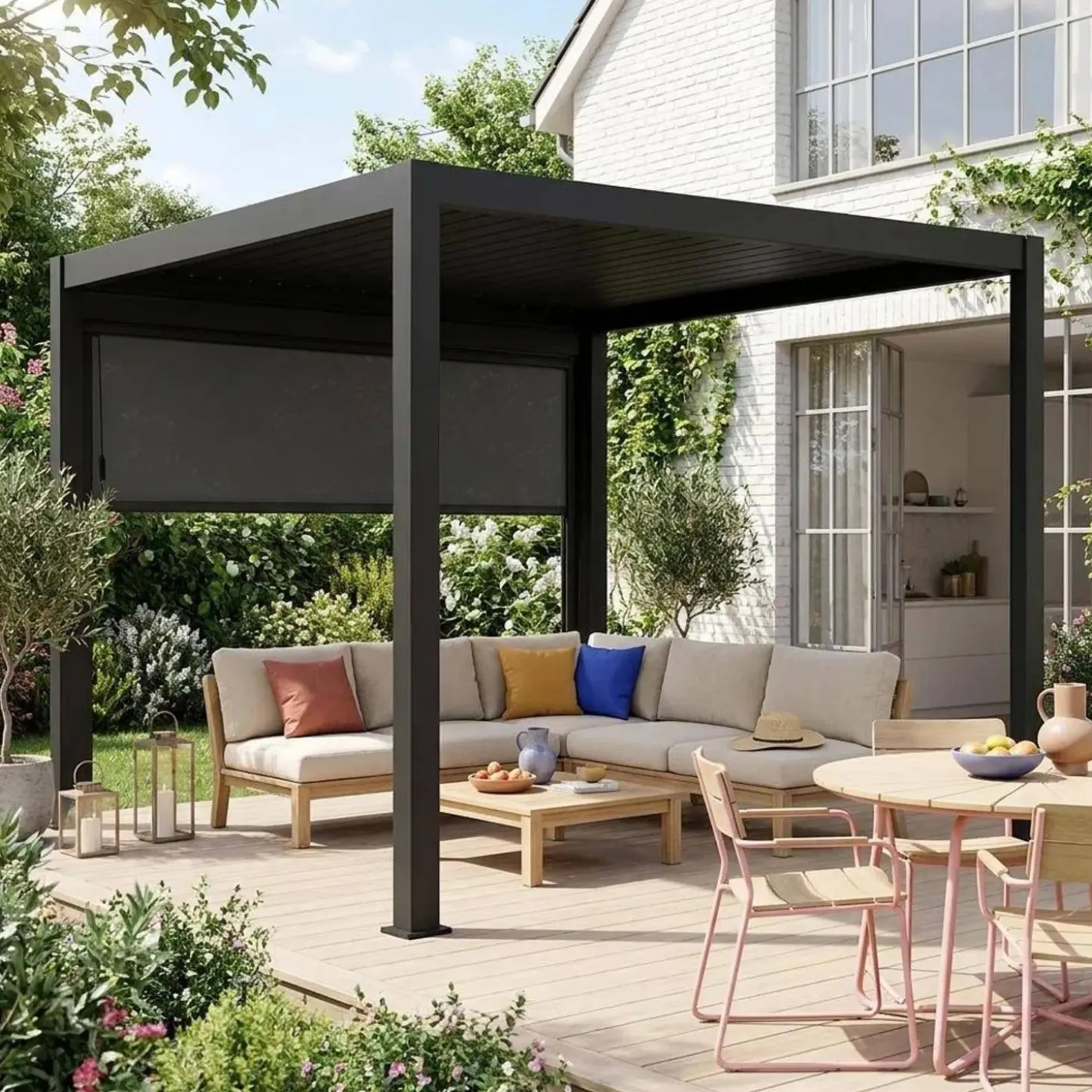

The Triomphe 3x3m V2 bioclimatic louvered pergola accompanies you to enjoy convivial moments in your garden. Forget putting your pergola away in autumn, this louvered model is suitable for all seasons. The pergola is permanently fixed to the ground. Its adjustable slats let you enjoy the shade and coolness in summer and stay dry the rest of the year. Place it above a garden table, near your pool area or to shelter your spa.
Designed with a quality aluminium structure (frame + legs) with galvanised steel slats, this pergola is a long-term investment. Aluminium is an ideal material for outdoor use, as it doesn’t rust and is resistant to bad weather and UV rays. this pergola is therefore robust and requires very little maintenance, so it will last for many years in your garden.

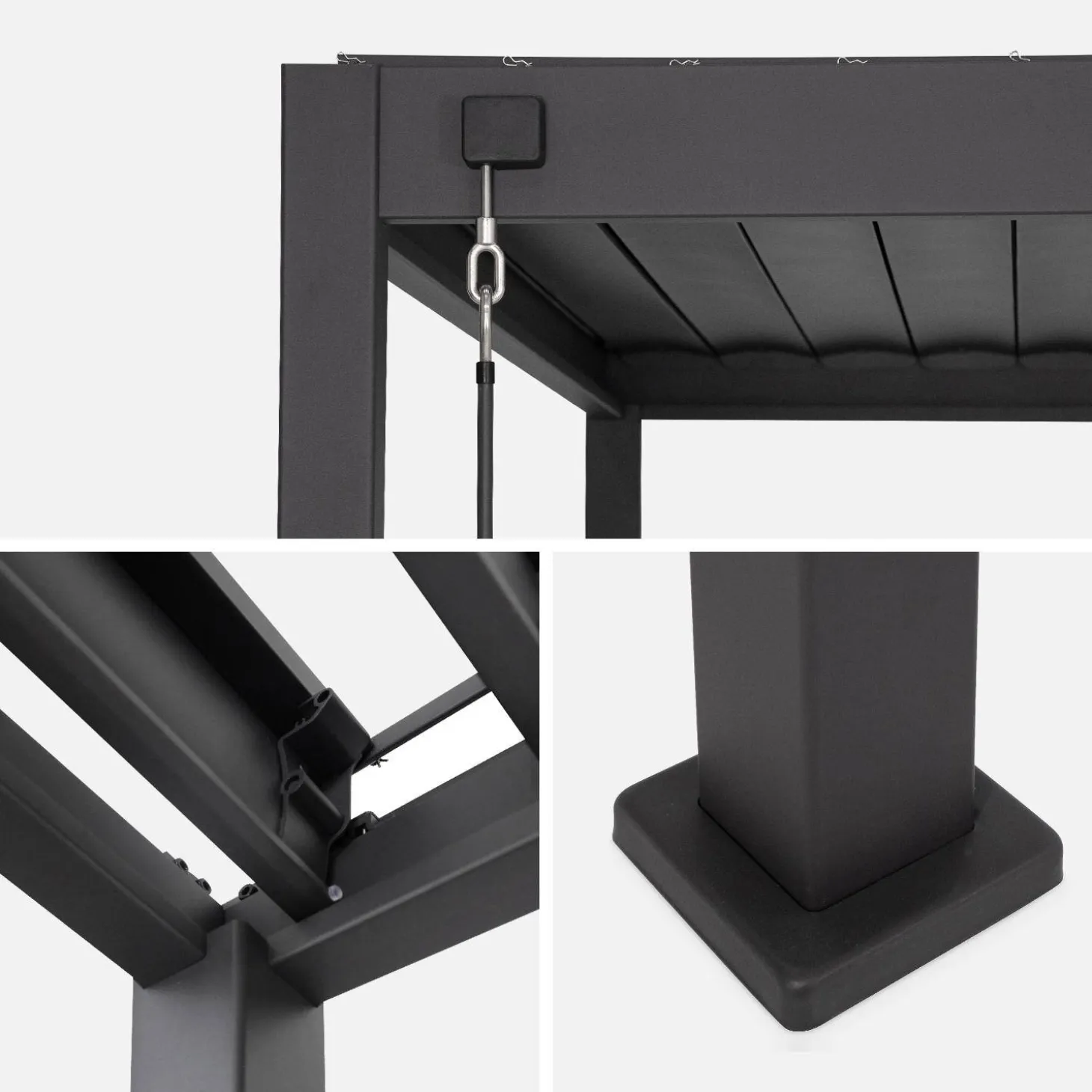

The privacy screen tilting slats are operated by a crank. Totally enclosed, it protects you from the sun’s rays and the rain. On the rainiest days, water is drained away through the poles by an innovative integrated drainage system. When partially open, you’ll enjoy plenty of ventilation while keeping the sun’s rays at bay. In short, you choose your exposure to the sun.
Additional information
This pergola must be installed on level ground
It is advisable to keep the slats open in the event of snowfall
Heavy-duty privacy screen included for added comfort

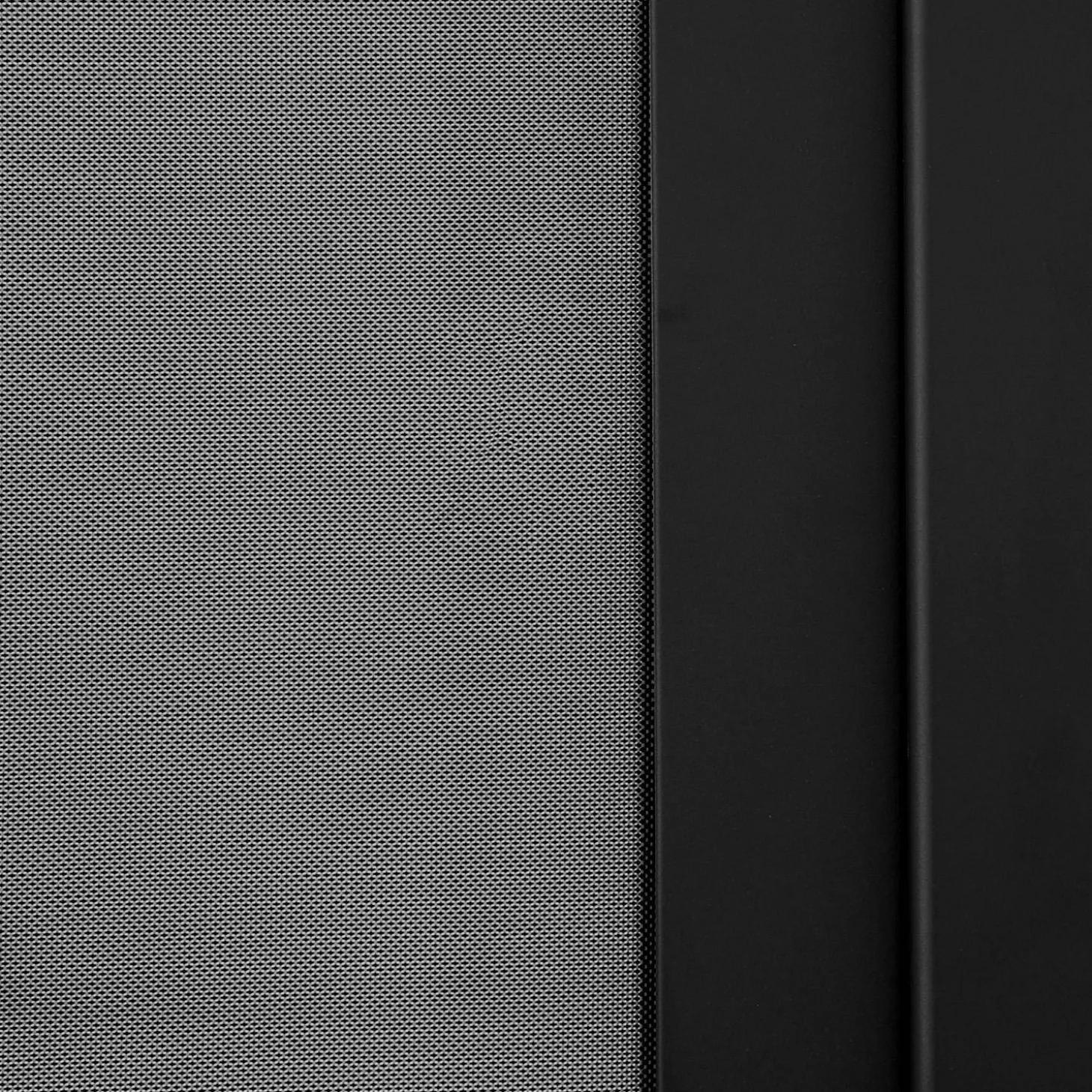

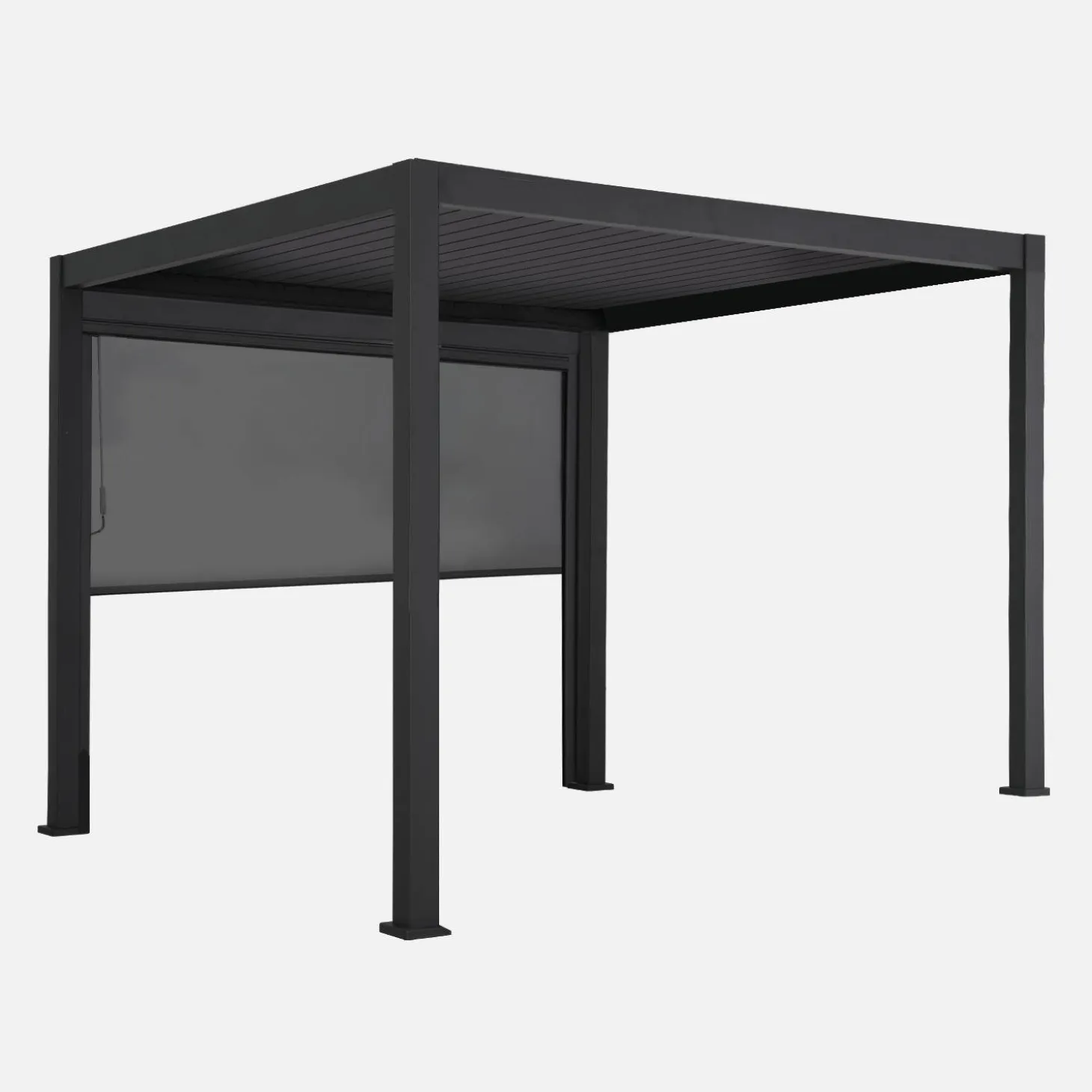

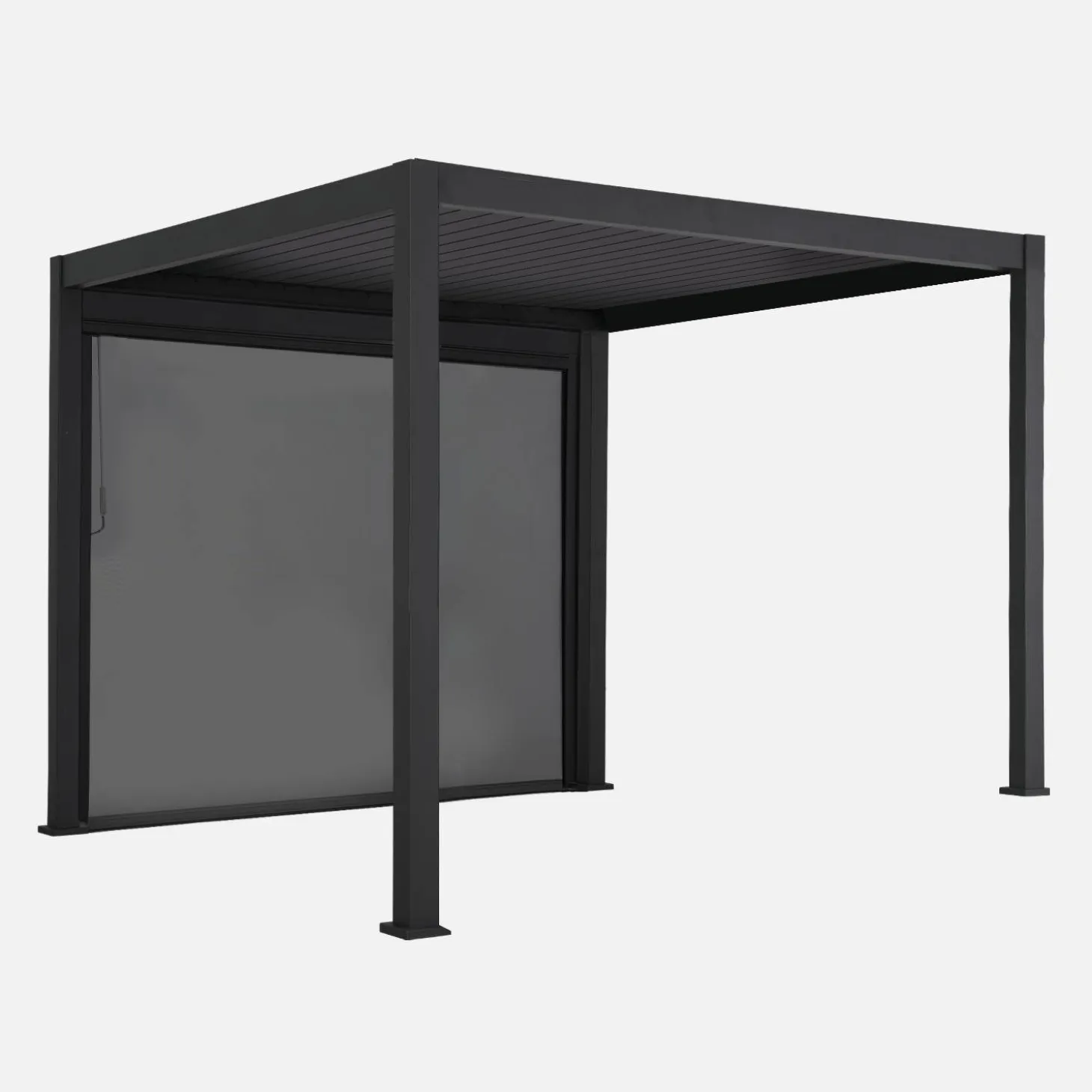

Take full advantage of your bioclimatic louvered pergola with this vertical aluminiumprivacy screen. It’s the essential accessory for protecting you from the sun and bad weather.Thisprivacy screenis perfect for providing optimum comfort on your terrace and for enjoying good times with family and friends . The height of the privacy screen can also be adjusted to suit your needs. Its levels and height are not predefined.
Easy to use, all you have to do is manually lower theprivacy screento shelter from the wind or rain. Solid, it is designed with quality materials. Its aluminium side panel and Textilene fabric offer effective resistance to UV rays and bad weather. For added safety, theprivacy screen must be retracted when you’re away or in strong winds (over 50km/h).
Additional information:
Although it offers protection against the rain, this pergola is not a totally waterproof shelter.
This pergola should be installed on level ground
It is advisable to keep the tears open in the event of snowfall
Your pergola is guaranteed for 2 years + 3 years free from the date of delivery. Blinds are not included in the extended warranty and are guaranteed for 2 years. You can find the conditions of this guarantee in our legal notice.
Compare our louvered pergolas
Package 1: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 2: L 278 x l 26 x h 23.5 cm – 42.94 kg
Package 3: L 303.5 x l 29 x h 17 cm – 32.72 kg
Package 4: L 302.5 x l 32 x h 19 cm – 54.6 kg
Package 5: L 302.5 x l 32 x h 19 cm – 50 kg
Instruction manual
Total protection against the sun: enjoy its freshness in summer
Natural ventilation

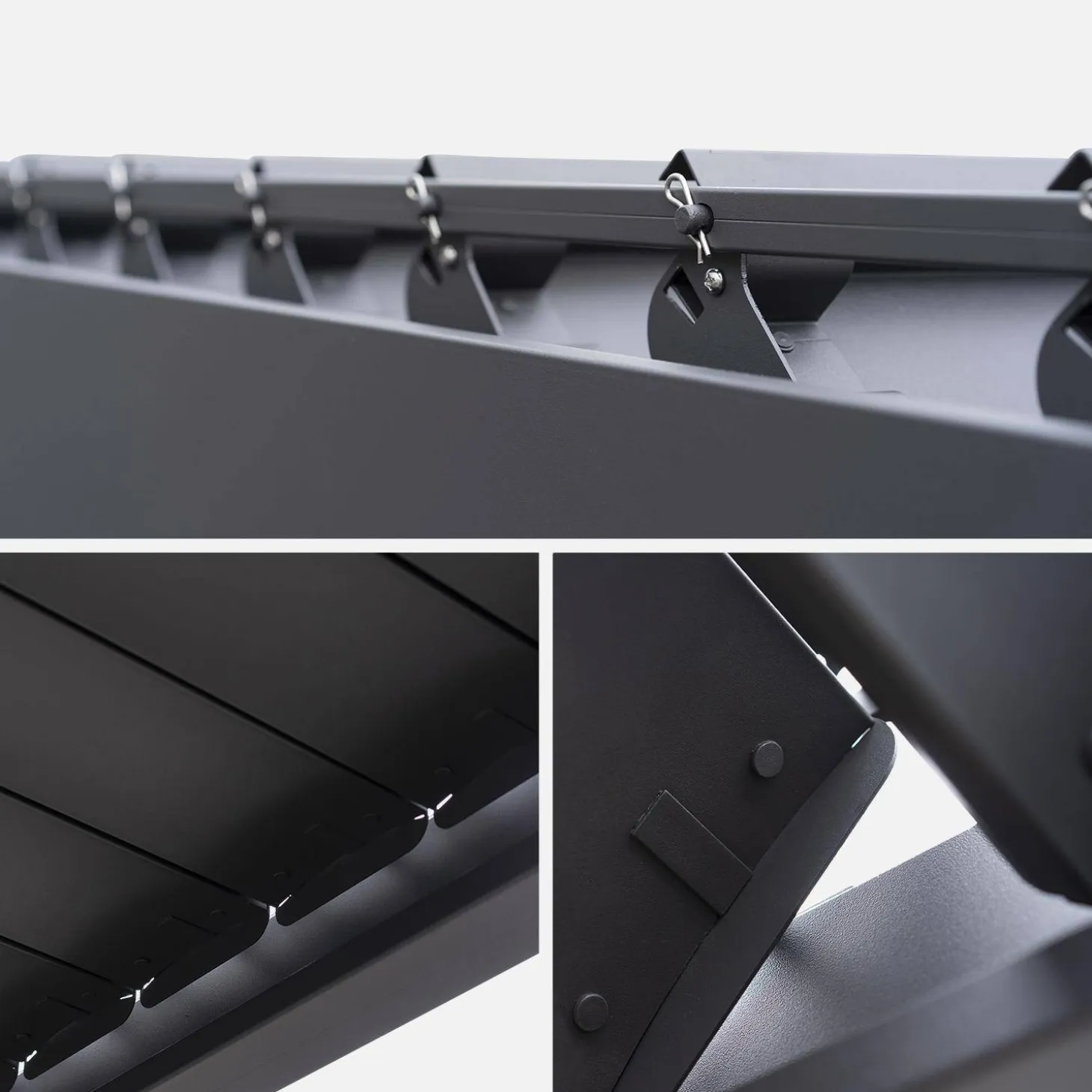

Tilting slats to adjust the light flow
| Type | Louvered pergola |
| Motorised | No |
| Shape | Square |
| Colour | Anthracite |
| Pantone code | 19-0201 |
| Warranty period | 2 years + 3 years free! (Excluding accessories) |
| Size | 3 x 3 m |
| Surface | 9 m² |
| Length | 3 m |
| Width | 3 m |
| Height to ridge | 2,57 m |
| Entrance height | 2,36 m |
| Height with closed slats | 2,50 m |
| Interior floor area | 8,89 |
| Floor area | 9 m² |
| Post dimensions | L 11 x P 11 x H 250 cm |
| Aluminium thickness | 1,4 / 1,5 mm |
| Slat dimensions | L 294 x D 17 x H 3 cm |
| Slat orientation | 0 to 90 degrees |
| Number of slats | 19 |
| Material | Aluminium |
| Frame material | Aluminium |
| Slat material | Galvanised steel |
| Roof material | Aluminium |
| Post material | Aluminium |
| Base material | Aluminium |
| Screw material | Inox |
| Treatment | Powder coating |
| To be fixed to the ground | Yes (anchor kit not included) |
| Crank handle | Yes |
| Wind resistance | 74 km/h |
| Load resistance | 66,4 kg/m² |
| Maximum permissible roof load | 597,6 kg |
| UV resistant | Yes |
| Anti-rust / Corrosion | Yes |
| Water drainage system | By drainage inside the posts |
| Waterproofing | Roof and slats |
| Accessories Included | 1 blind 3m Triomphe |
| Fabric material | Textilene |
| Density | 470 g/m² |
| Assembly time | 3h30 / 4 people |
| Number of packages | 5 |
| Use | Outdoor |
| Use | Domestic use only |
| Range | Triomphe |
| Size | 3x3m |
| Blades | Galvanised steel |
| Screws and bolts | Stainless steel |
| Water drainage system | By drainage inside the posts |
| Assembly | Easy |
| Pergola weight | 158kg |
| Overall external dimensions (pergola) | W301 x D301 x H250cm |
| RAL (blind) | 7015 |
| Dimensions (blind) | W289 x H236cm |
Package 1: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 2: L 278 x l 26 x h 23.5 cm – 42.94 kg
Package 3: L 303.5 x l 29 x h 17 cm – 32.72 kg
Package 4: L 302.5 x l 32 x h 19 cm – 54.6 kg
Package 5: L 302.5 x l 32 x h 19 cm – 50 kg
Instruction manual
