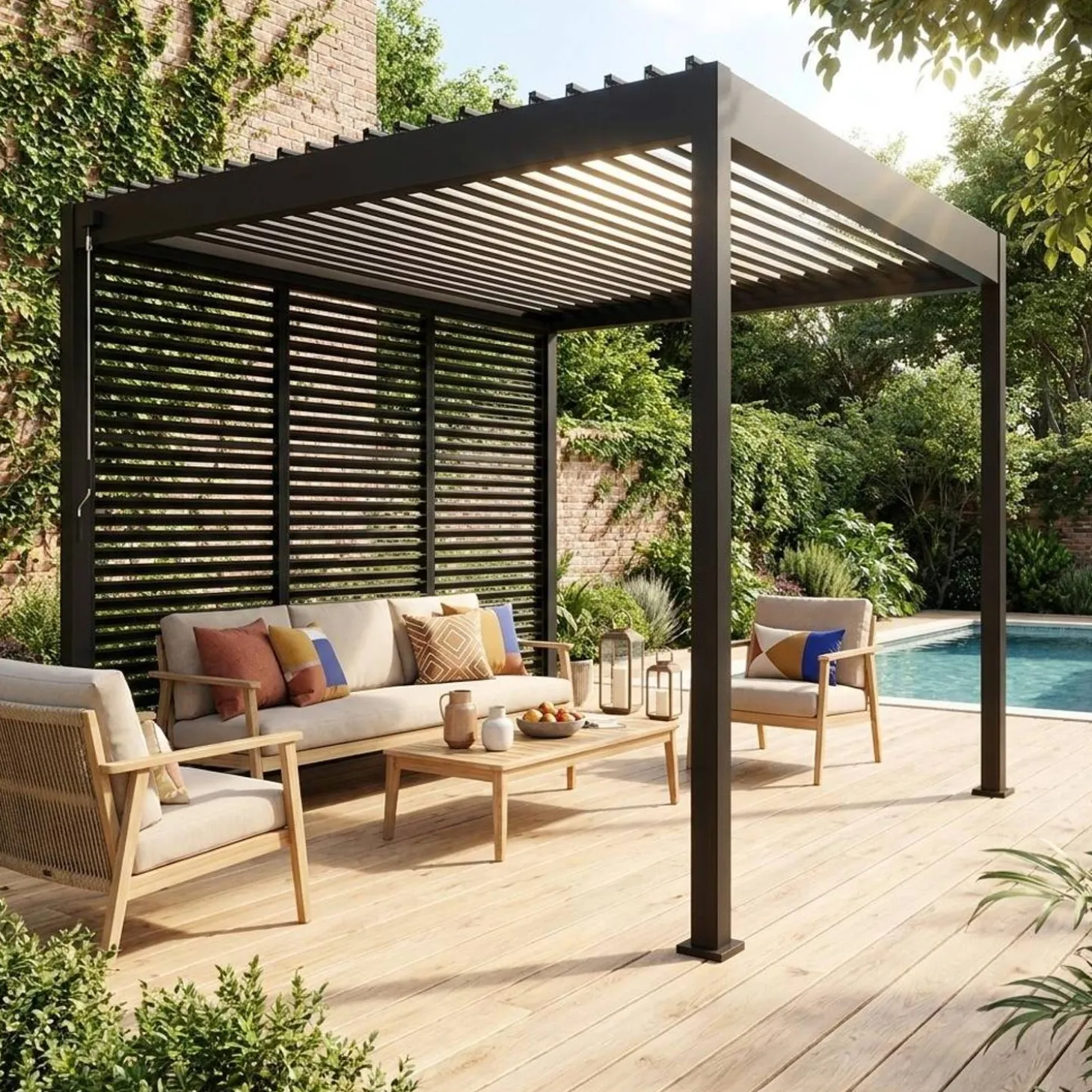

A four-season pergola
The bioclimatic pergola Triomphe 3x3m V2 is here to help you enjoy pleasant moments in your garden. Forget about having to store your pergola in autumn; this bioclimatic model is suitable for all seasons. The pergola is permanently fixed to the ground. Its adjustable slats allow you to enjoy its shade and coolness in the summer and to stay dry for the rest of the year. Place it above a garden table, near your pool area, or to shelter your spa.

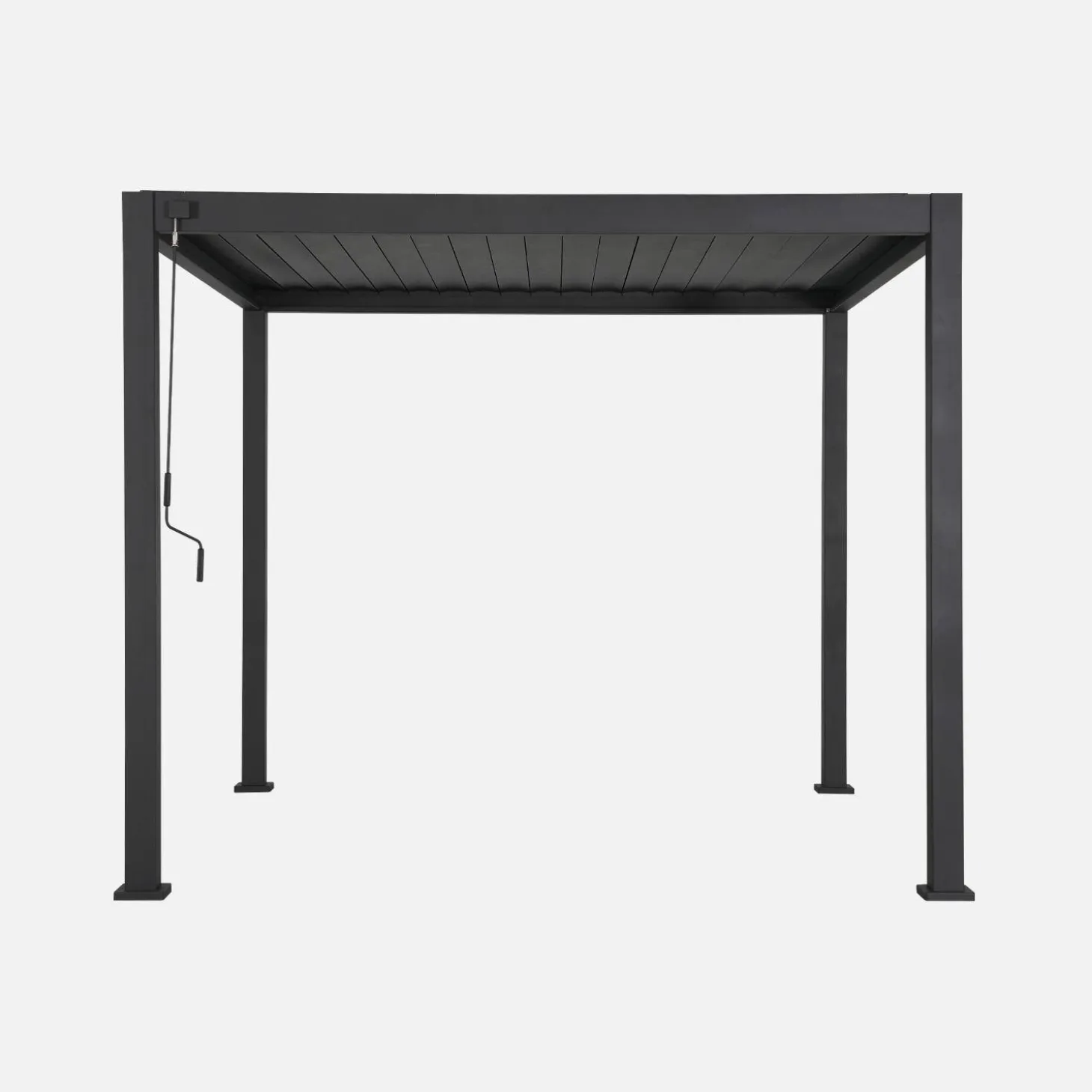

An aluminum structure
Designed with a high-quality aluminum structure (frame + legs) and galvanized steel slats, this pergola is a long-term investment. Aluminum is an ideal material for outdoor use; it does not rust, withstands bad weather, and UV rays. Therefore, this pergola is sturdy and requires very little maintenance, and it can last for many years in your garden.
Some sun but not too much…

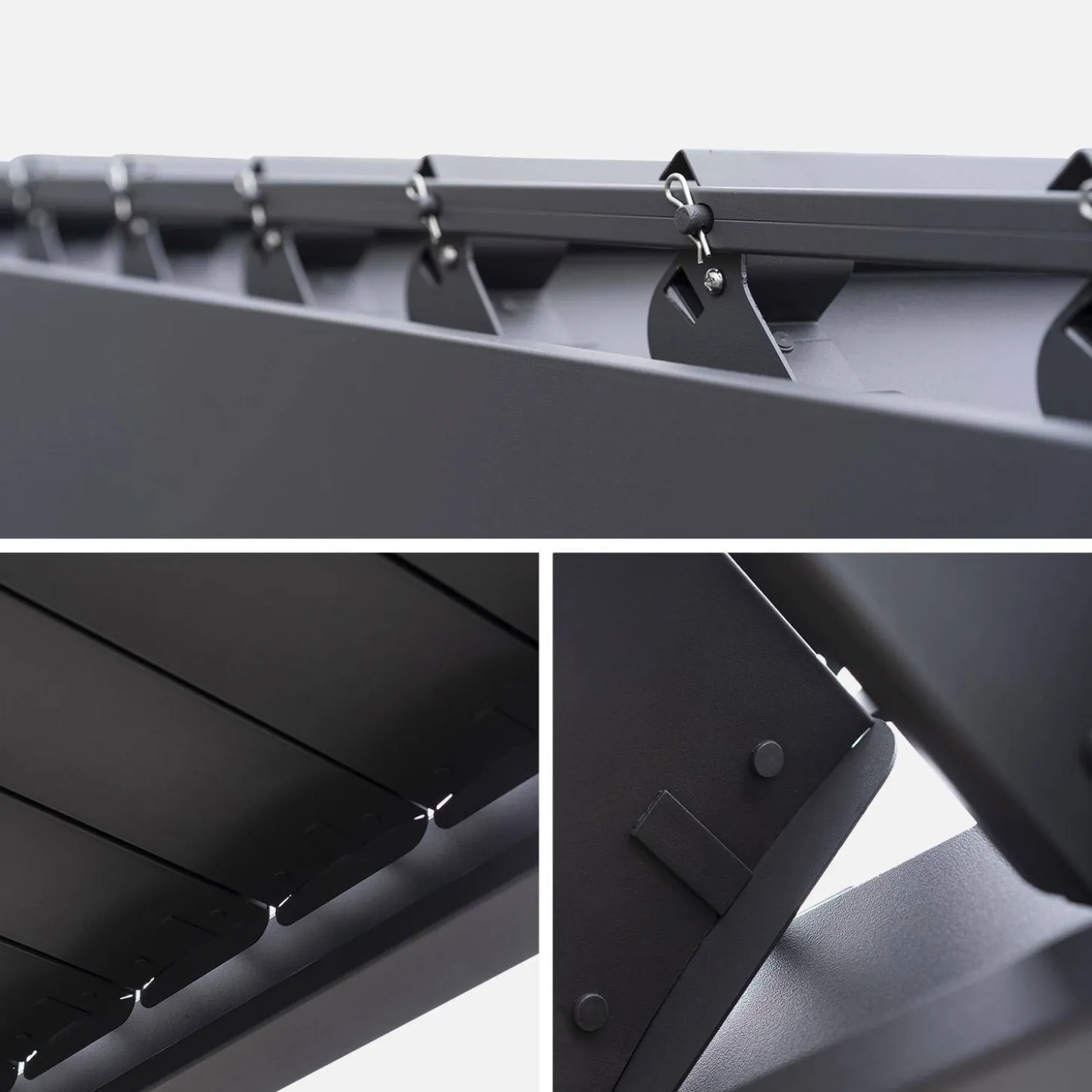

Thanks to a crank, the adjustable slats of the awning are operated. When fully closed, it protects you from the sun’s rays. During the rainiest days, water is drained through the posts by an innovative integrated drainage system. In partial opening, you will enjoy significant ventilation while controlling the sunlight. In short, you choose your exposure to the sun.

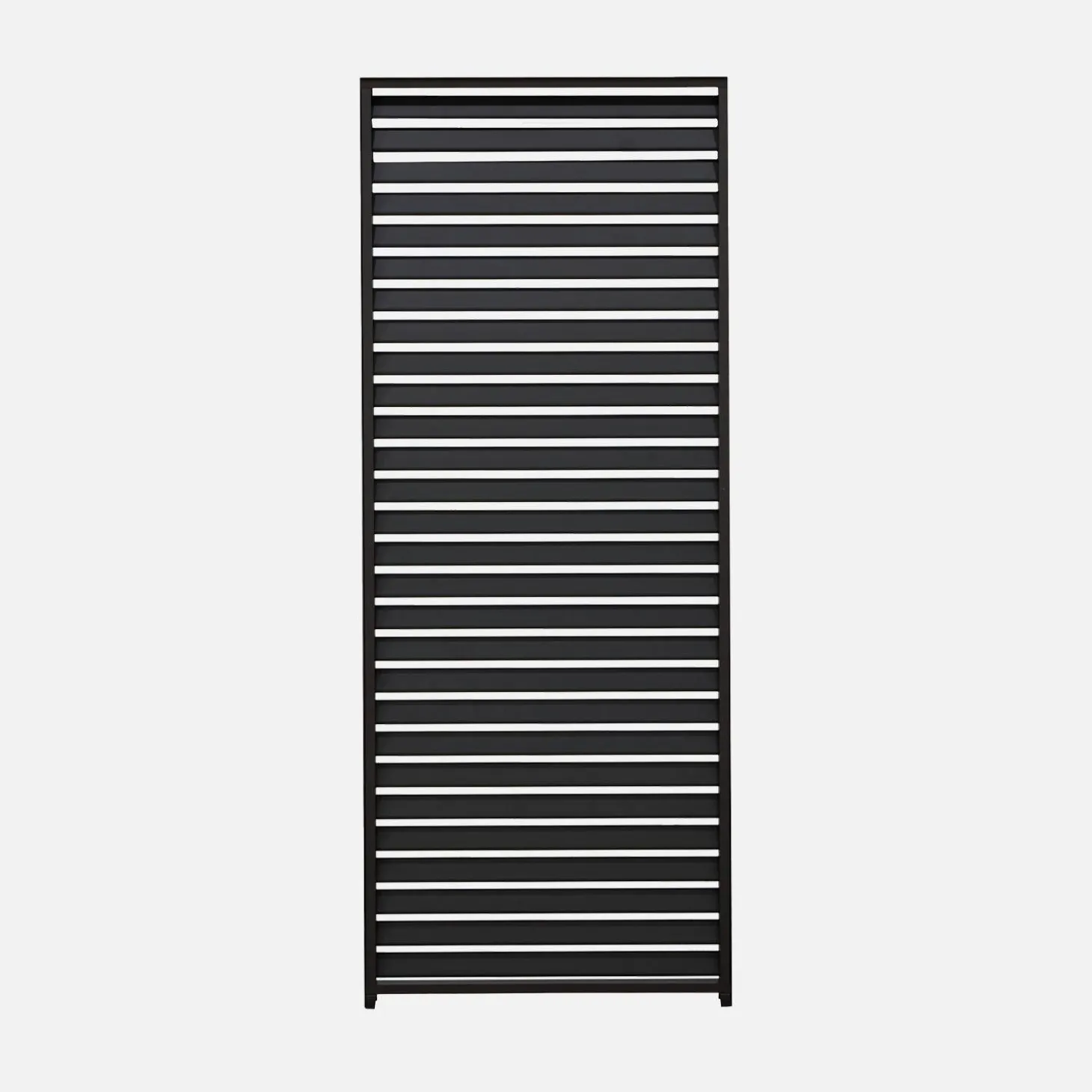

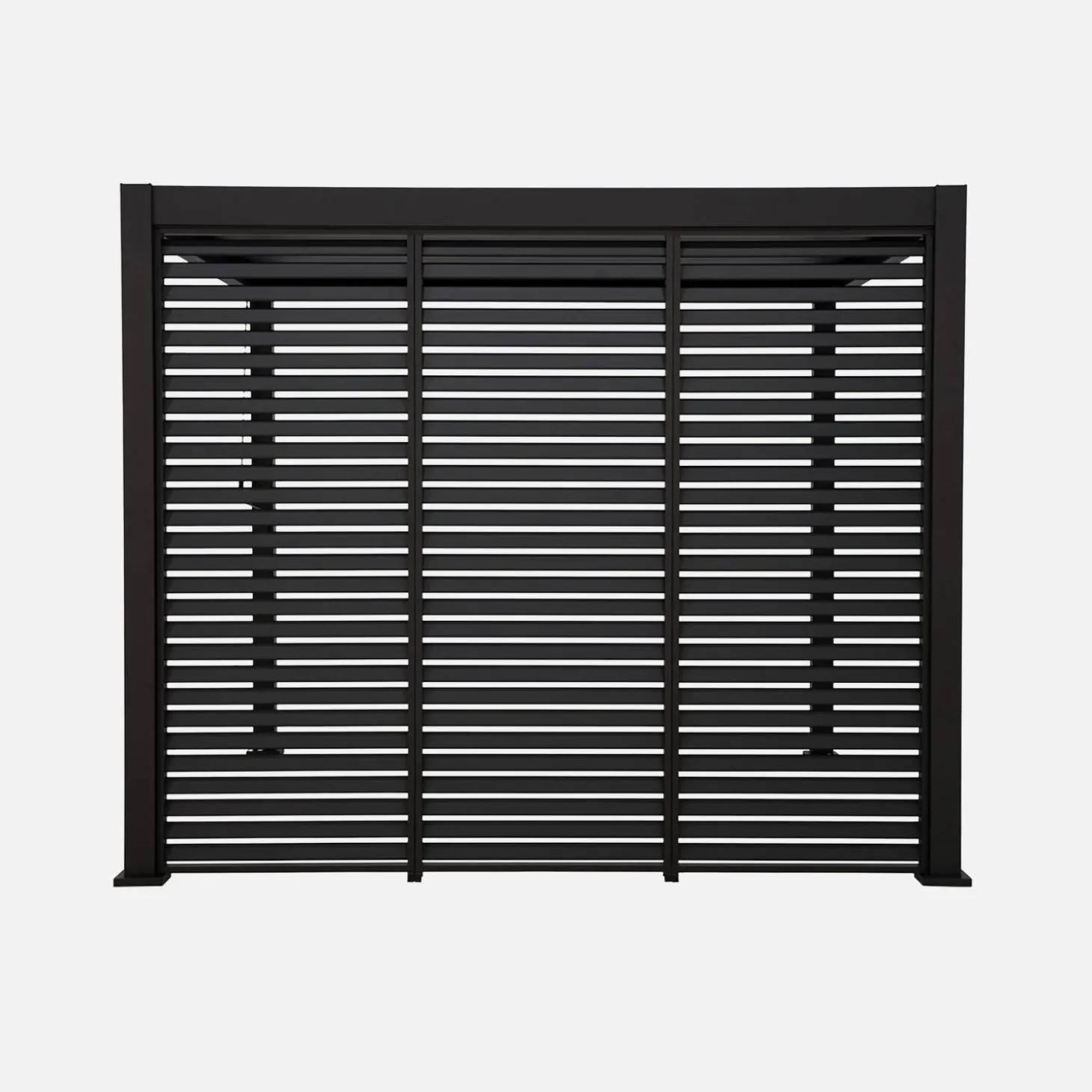

Louver panels to arrange your bioclimatic pergola.
Arrange your bioclimatic pergola with these louver panels that will transform it into a cozy and friendly space. These pergola panels protect you from the sun, lateral winds, light rain, and prying eyes while still allowing external light to pass through. Enjoy your outdoor space in complete serenity with these privacy panels!
A long-term and practical investment

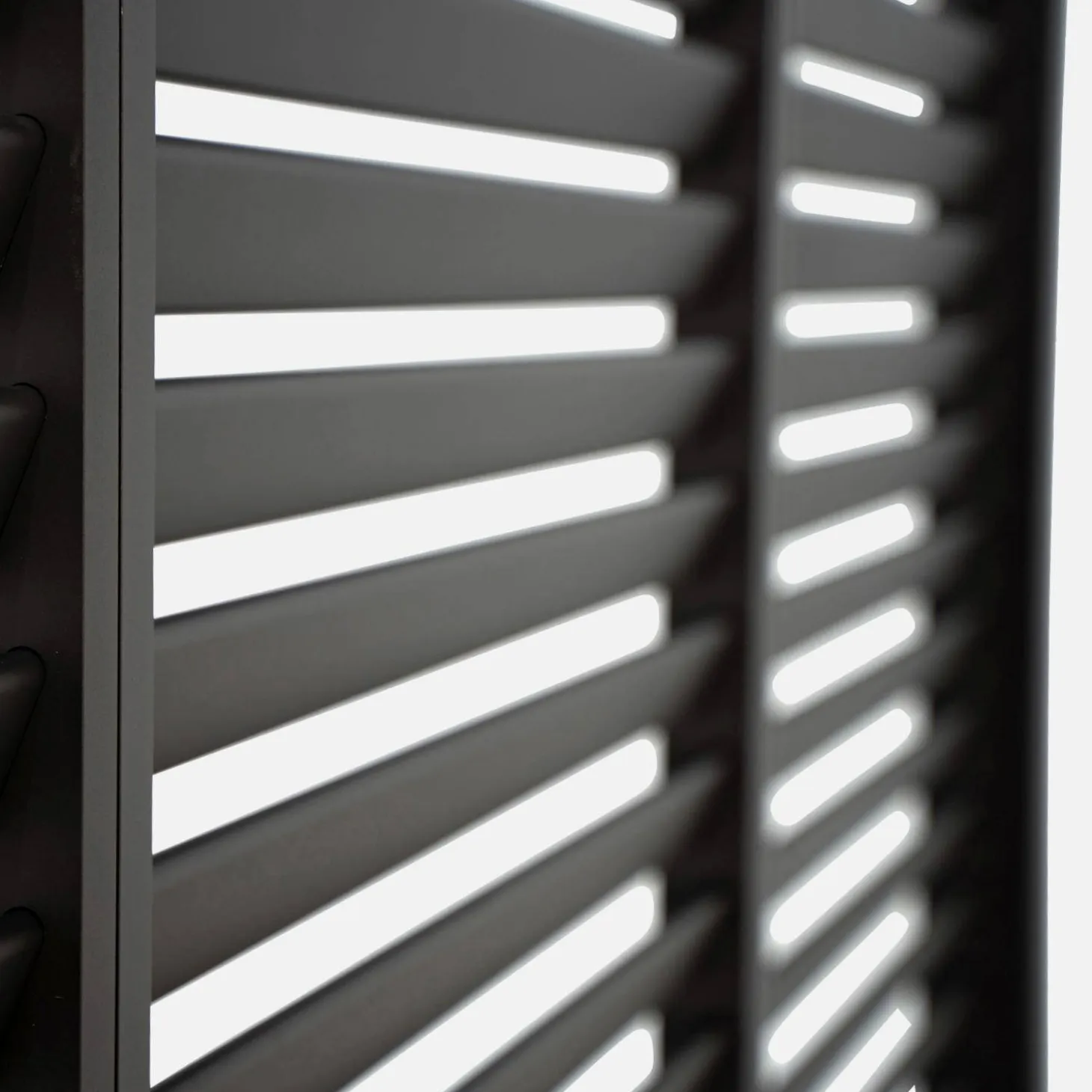

These panels consist of a slatted partition made up of 28 non-removable slats. Designed in aluminum, they are stylish and blend perfectly with your pergola. Aluminum has many advantages; it is a good long-term investment and easy to maintain.

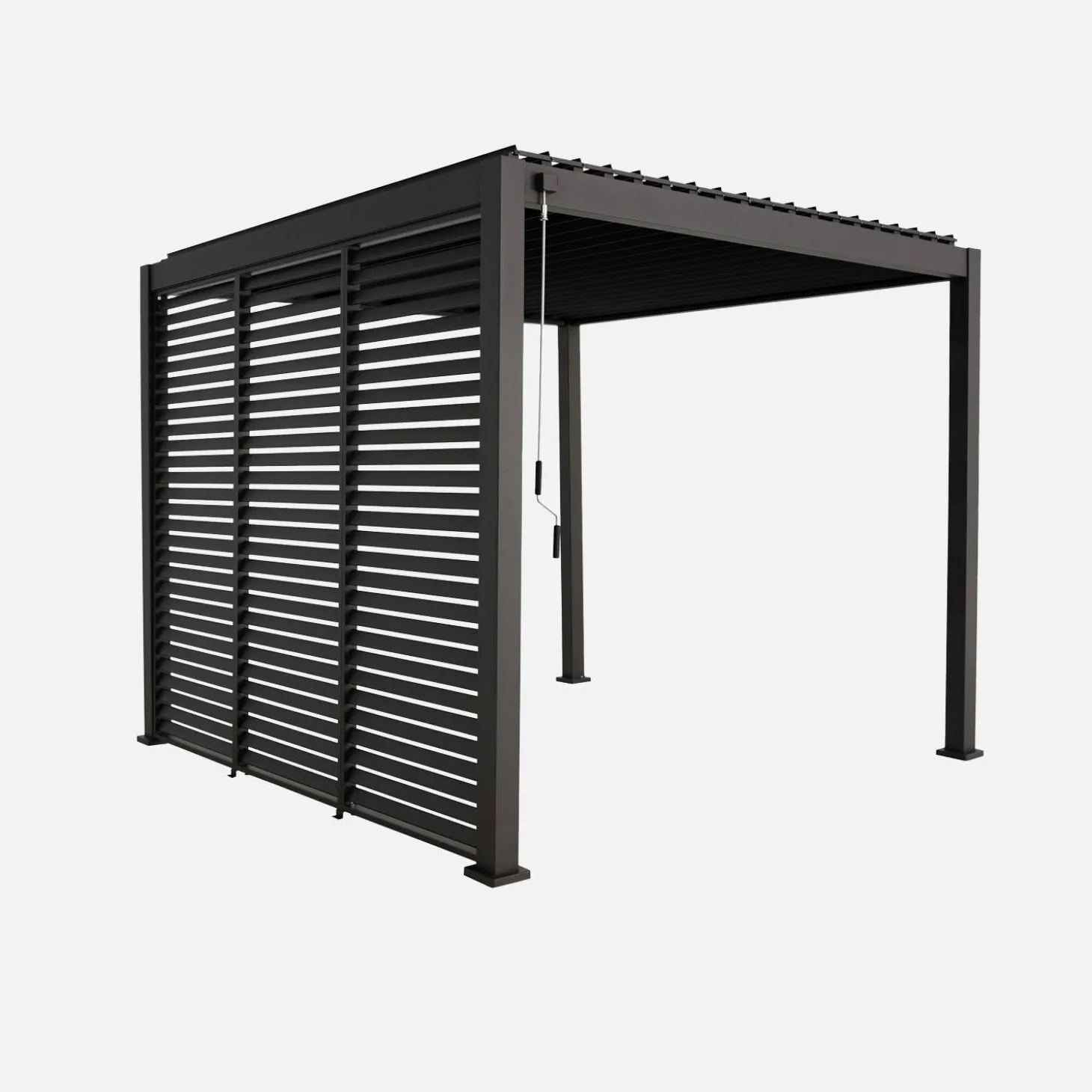

The panels can be positioned wherever you like on the side of your pergola: either against the vertical structure or freestanding in the center. You can place up to 3 louvers on each side, thus completely enclosing one side of the pergola.
Additional information:
Although it offers protection against the rain, this pergola is not a completely waterproof shelter.
The V2 version of the Triomphe pergola is taller than the first and has wider legs. It is compatible with accessories from the same range (3m PGBCRUS3AT awning).
This pergola is to be fixed on a level surface.
It is recommended to keep the slats open in case of snowfall.
Compare our bioclimatic pergolas
Package 1: L 236 x l 33 x h 8.5 cm – 20.15 kg
Package 2: L 236 x l 33 x h 8.5 cm – 20.15 kg
Package 3: L 236 x l 33 x h 8.5 cm – 20.15 kg
Package 4: L 278 x l 26 x h 23.5 cm – 42.94 kg
Package 5: L 303.5 x l 29 x h 17 cm – 32.72 kg
Package 6: L 302.5 x l 32 x h 19 cm – 54.6 kg
Package 7: L 302.5 x l 32 x h 19 cm – 50 kg
| Type | Louvered pergola |
| Motorised | No |
| Shape | Square |
| Colour | Anthracite |
| Pantone code | 19-0201 |
| Warranty period | 2 years + 3 years free! (Excluding accessories) |
| Size | 3 x 3 m |
| Surface | 9 m² |
| Length | 3 m |
| Width | 3 m |
| Height to ridge | 2,57 m |
| Entrance height | 2,36 m |
| Height with closed slats | 2,50 m |
| Interior floor area | 8,89 |
| Floor area | 9 m² |
| Post dimensions | L 11 x P 11 x H 250 cm |
| Aluminium thickness | 1,4 / 1,5 mm |
| Slat dimensions | L 294 x D 17 x H 3 cm |
| Slat orientation | 0 to 90 degrees |
| Number of slats | 19 |
| Material | Aluminium |
| Frame material | Aluminium |
| Slat material | Galvanised steel |
| Roof material | Aluminium |
| Post material | Aluminium |
| Base material | Aluminium |
| Screw material | Inox |
| Treatment | Powder coating |
| To be fixed to the ground | Yes (anchor kit not included) |
| Crank handle | Yes |
| Wind resistance | 74 km/h |
| Load resistance | 66,4 kg/m² |
| Maximum permissible roof load | 597,6 kg |
| UV resistant | Yes |
| Anti-rust / Corrosion | Yes |
| Water drainage system | By drainage inside the posts |
| Waterproofing | Roof and slats |
| Accessories Included | 3 louver panels 100cm |
| Assembly time | 4h30 / 4 people |
| Number of packages | 7 |
| Use | Outdoor |
| Use | Domestic use only |
| Range | Triomphe |
| Slats | Galvanized steel |
| Fasteners | Stainless steel |
| Overall dimensions of the pergola. | L 301 x W 301 x H 250 cm / 158.36 kg |
| Dimensions louver panel (x3) | L 93 x W 6 x H 238 cm / 16 kg |
| Slats dimensions (x28) | Width: 6.5 cm / Thickness: 1.5 cm |
Package 1: L 236 x l 33 x h 8.5 cm – 20.15 kg
Package 2: L 236 x l 33 x h 8.5 cm – 20.15 kg
Package 3: L 236 x l 33 x h 8.5 cm – 20.15 kg
Package 4: L 278 x l 26 x h 23.5 cm – 42.94 kg
Package 5: L 303.5 x l 29 x h 17 cm – 32.72 kg
Package 6: L 302.5 x l 32 x h 19 cm – 54.6 kg
Package 7: L 302.5 x l 32 x h 19 cm – 50 kg
| Charge resistance | 35 kg/m² |
| Wind resistance | 100 km/h |
| Vertical posts section | 11 x 11 cm |
| Horizontal poles section | 14 x 5 cm |
| Aluminum thickness | 1.4 mm |
| Maximum blade tilt | 90° |
| Number of blades | 19 |
| Blade dimensions | 300 x 17.3 x 3 cm |
| Thickness of the blades | 0.8 mm |
