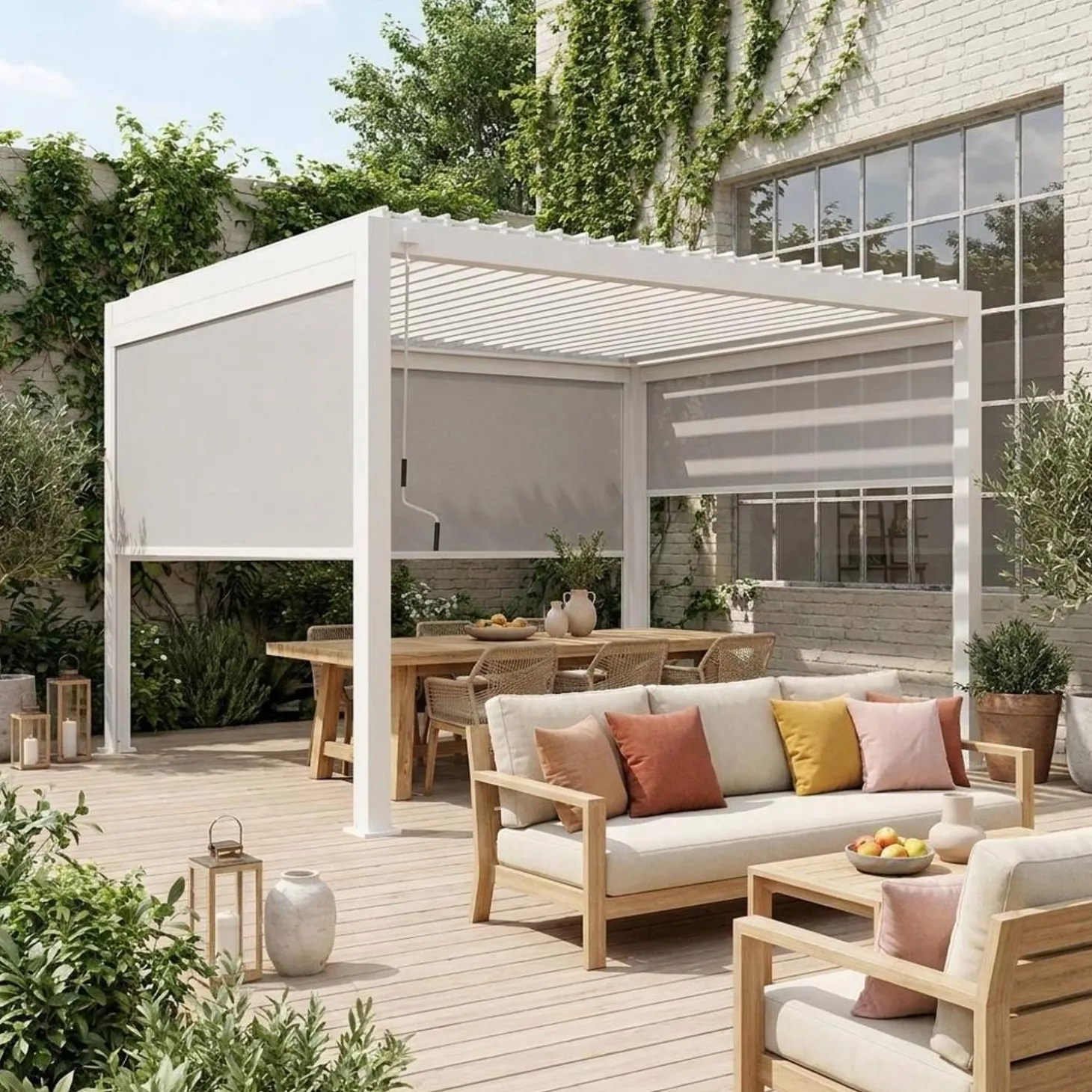

A bioclimatic pergola to enjoy your garden all year round
The bioclimatic pergola Triomphe 3x4m allows you to enjoy pleasant and friendly moments in your garden without worrying about the weather. Unlike other pergolas, it has the unique ability to adapt to different weather conditions. In winter, it protects you from the rain or allows you to enjoy the sun, and in summer, you can appreciate its shade and freshness. The pergola is fixed into the ground, so this system is permanent. No need to store your pergola every autumn; you will enjoy it all year round.
A sustainable investment
With its elegant design, it brings a contemporary touch to your garden. Its dimensions allow you to easily install it on your terrace above a garden table or by the poolside. It can also be used to shelter your spa.
Designed with a quality aluminium structure and galvanised steel slats, this pergola is a long-term investment. It is sturdy, UV-resistant, and requires very little maintenance.
Shade, sun, ventilation, it’s up to you to choose!

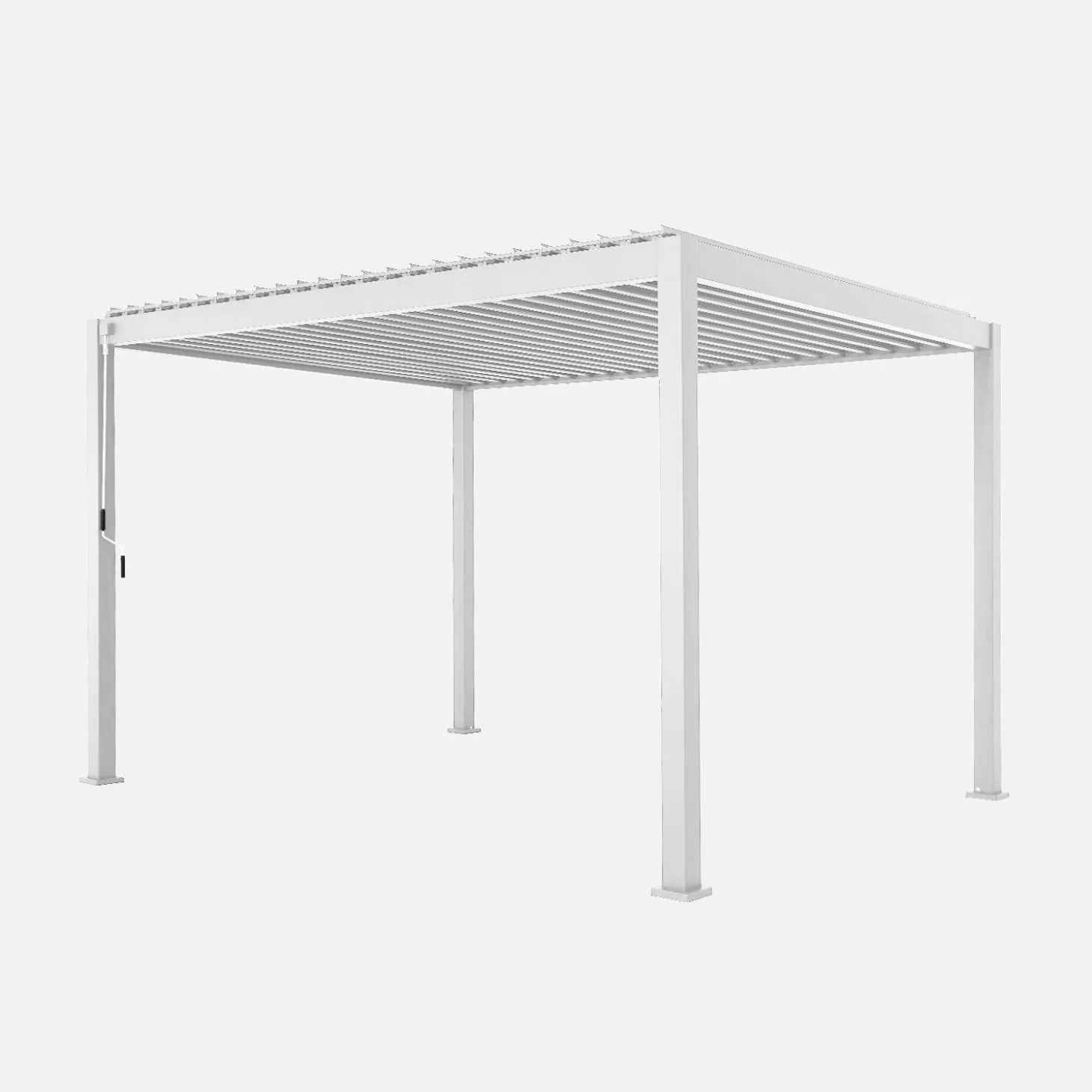

Its canopy can be opened and closed thanks to its adjustable slats operated by a crank. When fully closed, it offers complete protection against sun thanks to its insulating blades and maximum blackout. Water will be drained through the posts by an innovative integrated drainage system.
Its adjustable slats allow for natural ventilation while protecting you from the sun’s rays. They also enable you to adjust the light flow from the sun’s rays. In partial opening: you will achieve significant ventilation while blocking direct sunlight. In full opening, you can enjoy the sun and optimal ventilation.

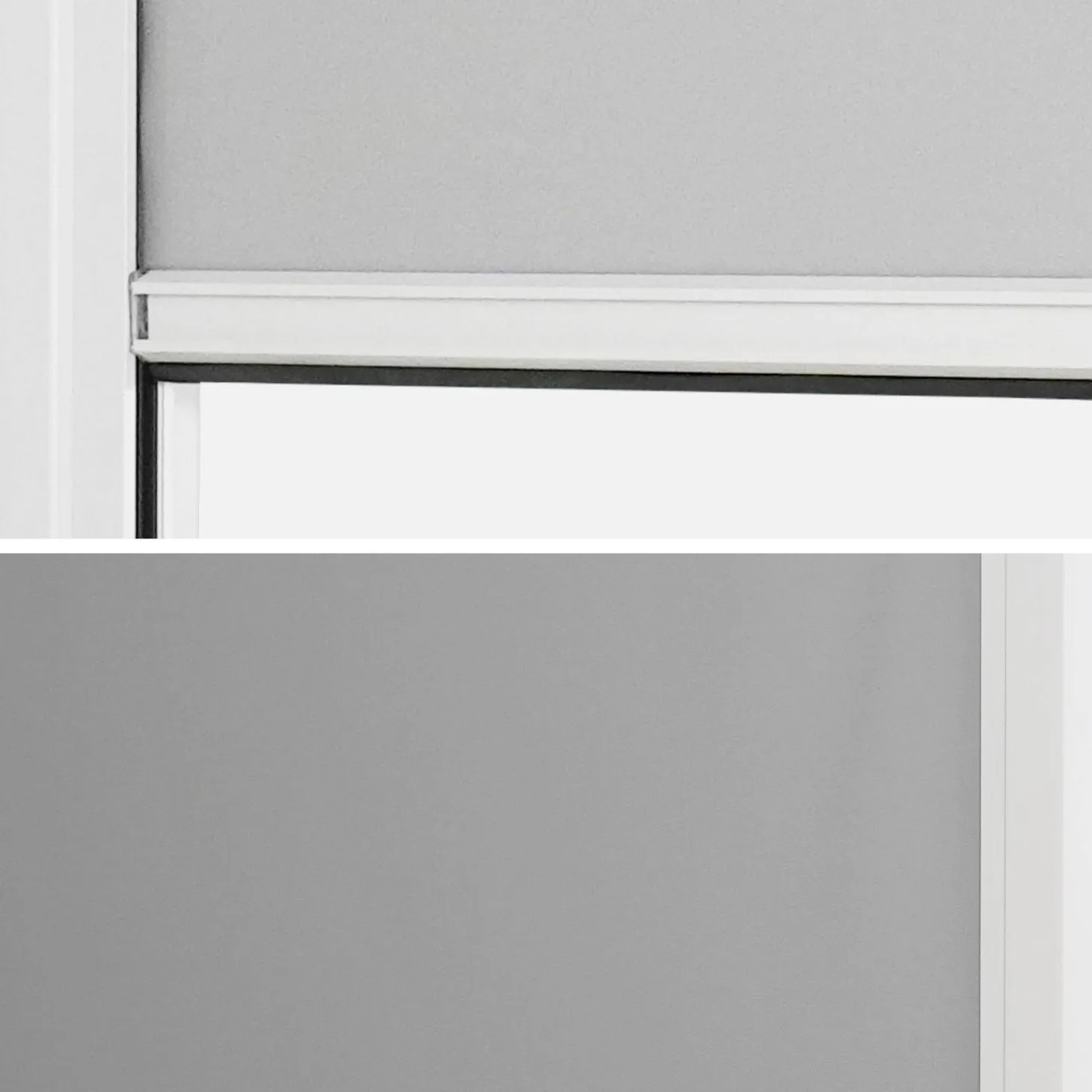

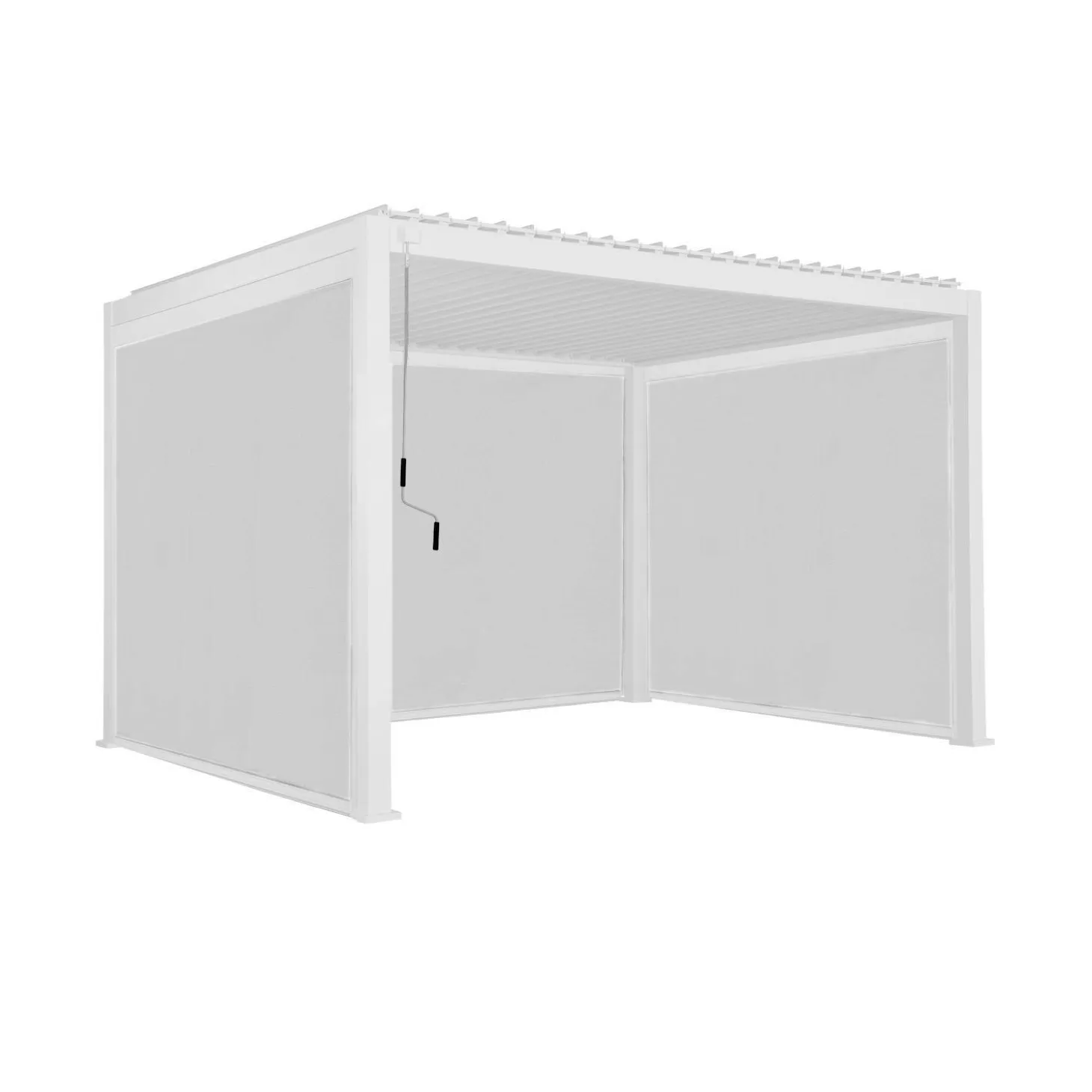

Blinds for added comfort
These blinds protect you from the sun and the elements. They also shield you from prying eyes without being completely opaque. They are perfect for providing optimal comfort on your terrace and enjoying good times with family or friends. Easy to use, you just need to manually lower the blinds to take shelter from the wind or light rain. Their height adjusts according to your needs, it is not predefined. Sturdy, they are made with quality materials. The aluminium sidewall and the textile fabric offer you effective resistance against UVs and the elements. For added security, the blinds should be retracted in case of absence or strong winds (over 50 km/h).
Additional Information:
Although it offers protection against the rain, this pergola is not a completely waterproof shelter.
This pergola is to be mounted on a level surface.
It is advisable to keep the tears open in case of snow accumulation.
Compare our bioclimatic pergolas
Package 1: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 2: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 3: L 381 x l 22.5 x h 17 cm – 43.5 kg
Package 4: L 278 x l 26 x h 23.5 cm – 43.5 kg
Package 5: L 395 x l 28 x h 17 cm – 37.6 kg
Package 6: L 302.5 x l 40 x h 19 cm – 68.5 kg
Package 7: L 302.5 x l 40 x h 19 cm – 65 kg
| Type | Louvered pergola |
| Motorised | No |
| Shape | Rectangular |
| Colour | White |
| Pantone code | 000C |
| Warranty period | 2 years + 3 years free! (Excluding accessories) |
| Size | 3 x 4 m |
| Surface | 12 m² |
| Length | 3 m |
| Width | 4 m |
| Height to ridge | 2,57 m |
| Entrance height | 2,36 m |
| Height with closed slats | 2,50 m |
| Interior floor area | 10,35 m² |
| Floor area | 12 m² |
| Post dimensions | L 11 x P 11 x H 250 cm |
| Aluminium thickness | 1,4 / 1,5 mm |
| Slat dimensions | L 294 x D 17 x H 3 cm |
| Slat orientation | 0 to 90 degrees |
| Number of slats | 25 |
| Material | Aluminium |
| Frame material | Aluminium |
| Slat material | Galvanised steel |
| Roof material | Aluminium |
| Post material | Aluminium |
| Base material | Aluminium |
| Screw material | Inox |
| Treatment | Powder coating |
| To be fixed to the ground | Yes (anchor kit not included) |
| Crank handle | Yes |
| Wind resistance | 74 km/h |
| Load resistance | 66,4 kg/m² |
| Maximum permissible roof load | 769,8 kg |
| UV resistant | Yes |
| Anti-rust / Corrosion | Yes |
| Water drainage system | By drainage inside the posts |
| Waterproofing | Roof and slats |
| Accessories Included | 2 blinds 3m + 1 blind 4m Triomphe |
| Fabric material | Textilene |
| Density | 470 g/m² |
| Assembly time | 6h30 / 4 people |
| Number of packages | 7 |
| Use | Outdoor |
| Use | Domestic use only |
| Range | Triomphe |
| Blade materials | Galvanized steel |
| Fastener material | Stainless steel |
| Dimensions (overall) | L 400 x W 300 x H 250 cm / 189.6 kg |
| Resistance charge | 35 kg/m² |
| Wind resistance | 100 km/h |
| Maximum blade tilt | 90° |
| Number of blades | 25 |
| Crank number | 1 |
| Dimensions of the blinds 3m (x2) | L 289 x H 236 cm / 33.29 kg |
| Store dimensions 4m | L 370 x H 236 cm / 38.72 kg |
| Usage | Manual |
| Fixing on pergola legs | 11 cm |
Package 1: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 2: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 3: L 381 x l 22.5 x h 17 cm – 43.5 kg
Package 4: L 278 x l 26 x h 23.5 cm – 43.5 kg
Package 5: L 395 x l 28 x h 17 cm – 37.6 kg
Package 6: L 302.5 x l 40 x h 19 cm – 68.5 kg
Package 7: L 302.5 x l 40 x h 19 cm – 65 kg
| Vertical pole section | 11.1 x 11.1 cm |
| Horizontal poles section | 14 x 7.5 cm |
| Aluminium thickness | 1.3mm |
| Blade dimensions | 300 x 17.3 x 3 cm |
| Thickness of the blades | 0.8mm |
