A bioclimatic pergola to enjoy your garden year-round
The bioclimatic pergola Triomphe 3x6m allows you to enjoy pleasant and friendly moments in your garden without worrying about the weather. Unlike other pergolas, it has the unique ability to adapt to different weather conditions. In winter, it protects you from rain or allows you to enjoy the sun, and in summer, you can appreciate its shade and freshness. The pergola is fixed to the ground, making this system permanent. No more need to store your pergola every autumn; you can enjoy it all year round.
A design and sustainable investment
With its lightweight and elegant design, it adds a contemporary touch to your garden. Its dimensions allow you to easily install it on your terrace above a garden table or by the poolside. It can also be used to shelter your spa.
Designed with a quality aluminum structure and galvanized steel slats, this pergola is a long-term investment. It is sturdy, UV-resistant, and requires very little maintenance.
Shade, sun, ventilation, it鈥檚 up to you to choose!

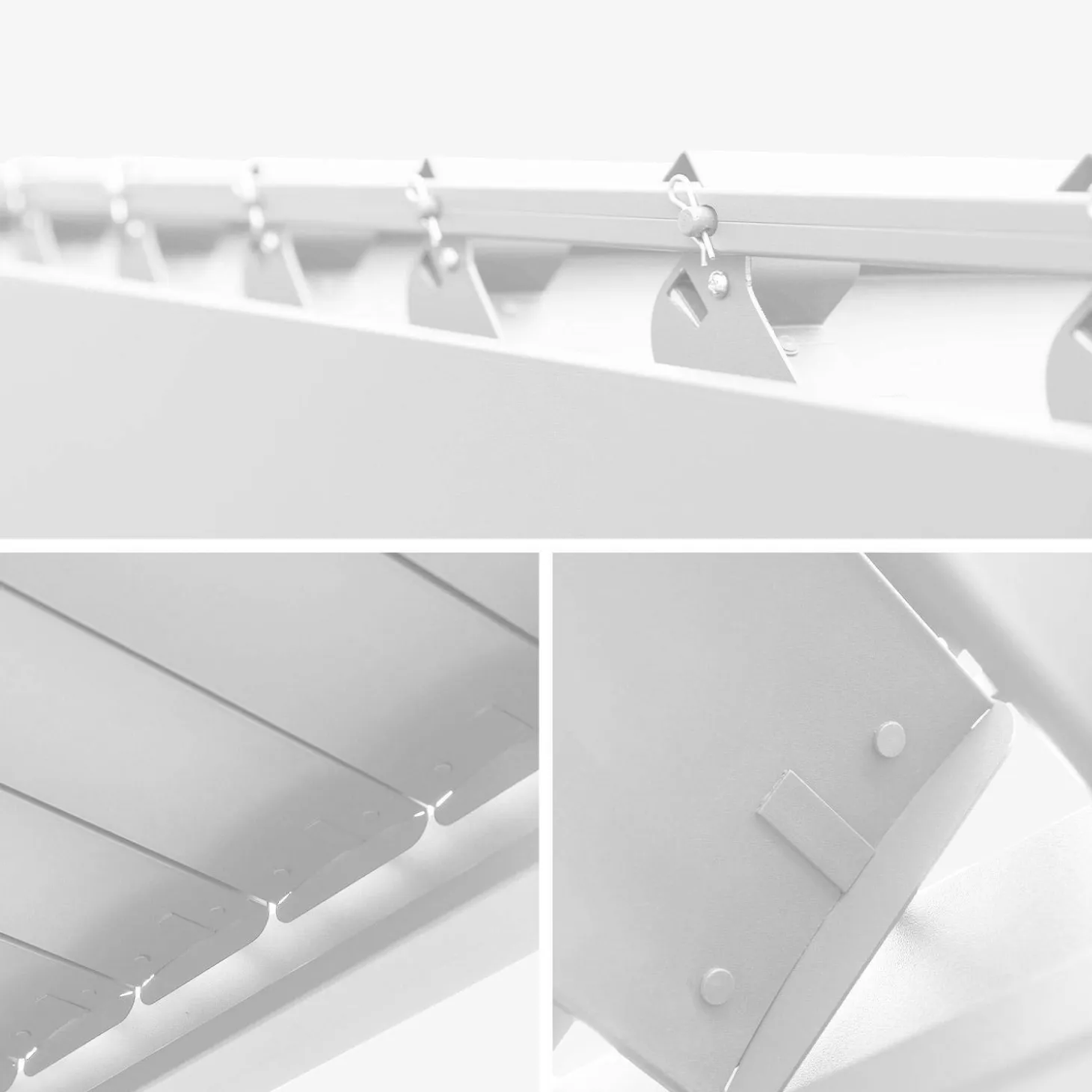

Its canopy can be opened and closed thanks to its adjustable slats that are operated by a crank. When fully closed, it provides total protection against the sun and rain due to its insulating blades and maximum shading. Its seals ensure perfect waterproofing. Water will be drained through the posts by an innovative integrated drainage system.
Its adjustable blades allow for natural ventilation, gently while being protected from the sun’s rays. They also enable you to control the light flow from the sun’s rays. In partial opening: you will achieve significant ventilation while filtering direct sunlight. In full opening, you can enjoy the sun and optimal ventilation.
Blinds for added comfort

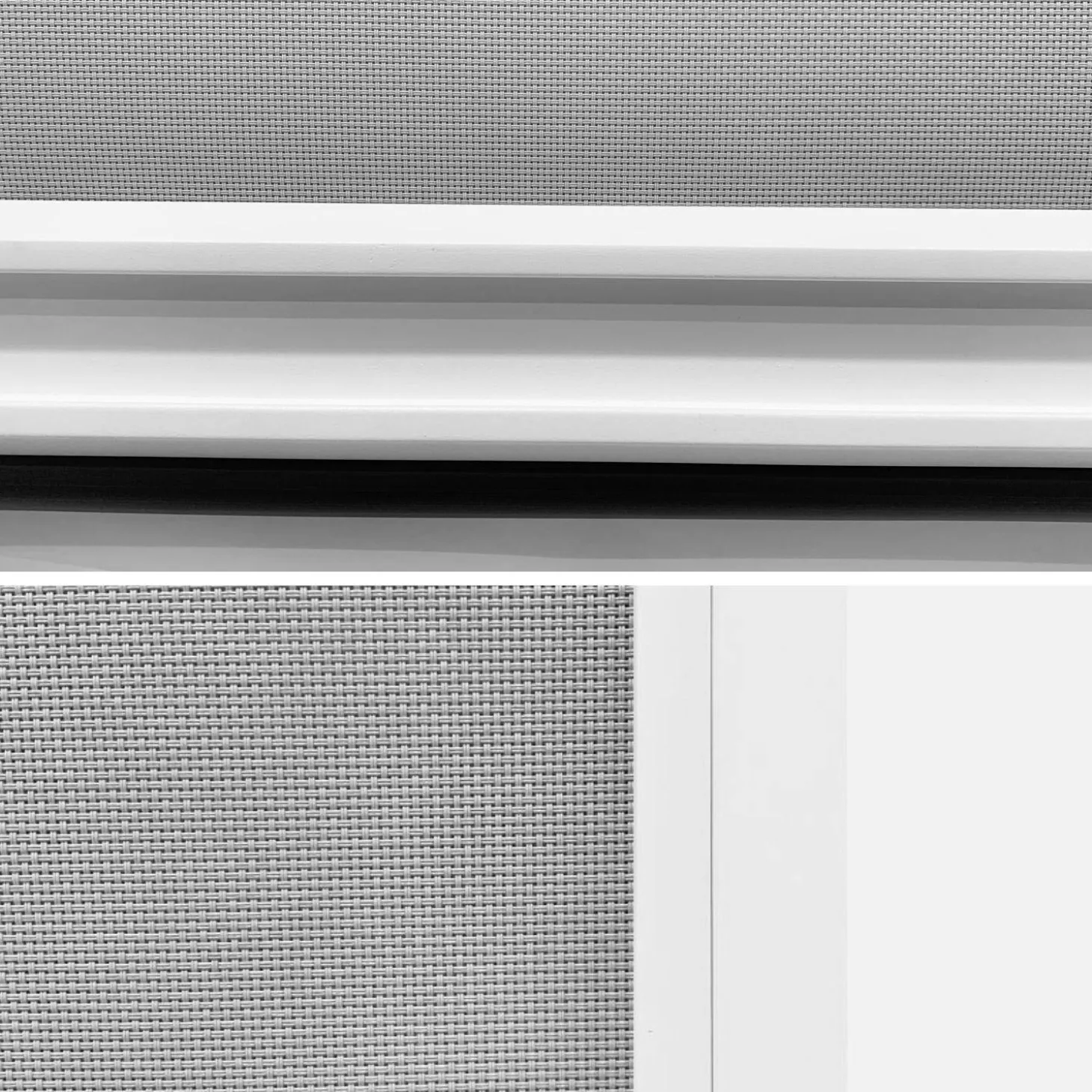

These blinds protect you from the sun and the elements. They also shield you from prying eyes without being completely opaque. They are perfect for providing optimal comfort on your terrace and enjoying good moments with family or friends. Easy to use, you just need to manually lower the shades to shelter yourself from the wind or rain. Their height can be adjusted according to your needs; it is not predefined. Sturdy, they are made of quality materials. The side wall is made of aluminum and the fabric is made of textilene, offering effective resistance against UV rays and the elements. For added security, the blinds should be rolled up in case of absence or strong winds (over 50 km/h).
Additional Information
Although it offers protection against the rain, this pergola is not a completely waterproof shelter.
This pergola is to be fixed on a level surface.
It is recommended to keep the slats open in case of snow fall.
Compare our bioclimatic pergolas
Package 1: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 2: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 3: L 255 x l 37 x h 23.5 cm – 47.84 kg
Package 4: L 336 x l 41 x h 17 cm – 65.6 kg
Package 5: L 302.5 x l 40 x h 19 cm – 67.8 kg
Package 6: L 302.5 x l 40 x h 19 cm – 67.8 kg
Package 7: L 298.5 x l 40 x h 19 cm – 63 kg
Instruction manual
| Type | Louvered pergola |
| Motorised | No |
| Shape | Rectangular |
| Colour | White |
| Pantone code | 000C |
| Warranty period | 2 years + 3 years free! (Excluding accessories) |
| Size | 3 x 6 m |
| Surface | 18 m² |
| Length | 3 m |
| Width | 6 m |
| Height to ridge | 2,57 m |
| Entrance height | 2,36 m |
| Height with closed slats | 2,50 m |
| Interior floor area | 17,8 m² |
| Floor area | 18 m² |
| Post dimensions | L 11 x P 11 x H 250 cm |
| Aluminium thickness | 1,5 mm |
| Slat dimensions | L 294 x D 17 x H 3 cm |
| Slat orientation | 0 to 90 degrees |
| Number of slats | 38 |
| Material | Aluminium |
| Frame material | Aluminium |
| Slat material | Galvanised steel |
| Roof material | Aluminium |
| Post material | Aluminium |
| Base material | Aluminium |
| Screw material | Inox |
| Treatment | Powder coating |
| To be fixed to the ground | Yes (anchor kit not included) |
| Crank handle | Yes |
| Wind resistance | 74 km/h |
| Load resistance | 66,4 kg/m² |
| Maximum permissible roof load | 1195,2 kg |
| UV resistant | Yes |
| Anti-rust / Corrosion | Yes |
| Water drainage system | By drainage inside the posts |
| Waterproofing | Roof and slats |
| Accessories Included | 2 blinds 3m Triomphe |
| Fabric material | Textilene |
| Density | 470 g/m² |
| Assembly time | 4h30 / 4 people |
| Number of packages | 7 |
| Use | Outdoor |
| Use | Domestic use only |
| Range | Triomphe |
| Blades | Galvanized steel |
| Fasteners | Stainless steel |
| Overall external dimensions | L600 x W300 x H250cm |
| Resistance charge | 35 kg/m² |
| Wind resistance | 100 km/h |
| Maximum blade tilt | 90° |
| Number of blades | 38 |
| Water drainage system | By drainage inside the posts |
| Quality of aluminum structure | Does not rust, no maintenance required |
| Roof and blades | Waterproof |
| Assembly | Easy |
| 2x Store | L289 x H236cm |
| Usage | Manual |
| Pergola leg fastening | 11cm |
Package 1: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 2: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 3: L 255 x l 37 x h 23.5 cm – 47.84 kg
Package 4: L 336 x l 41 x h 17 cm – 65.6 kg
Package 5: L 302.5 x l 40 x h 19 cm – 67.8 kg
Package 6: L 302.5 x l 40 x h 19 cm – 67.8 kg
Package 7: L 298.5 x l 40 x h 19 cm – 63 kg
Instruction manual
| Vertical posts section | 11.1 x 11.1 cm |
| Horizontal poles section | 14 x 7.5 cm |
| Aluminum thickness | 1.5 mm |
| Blade dimensions | 300 x 17.3 x 3 cm |
| Thickness of the blades | 30 mm |
| Steel thickness | 1 mm |
